Diopter Adapter 138mm

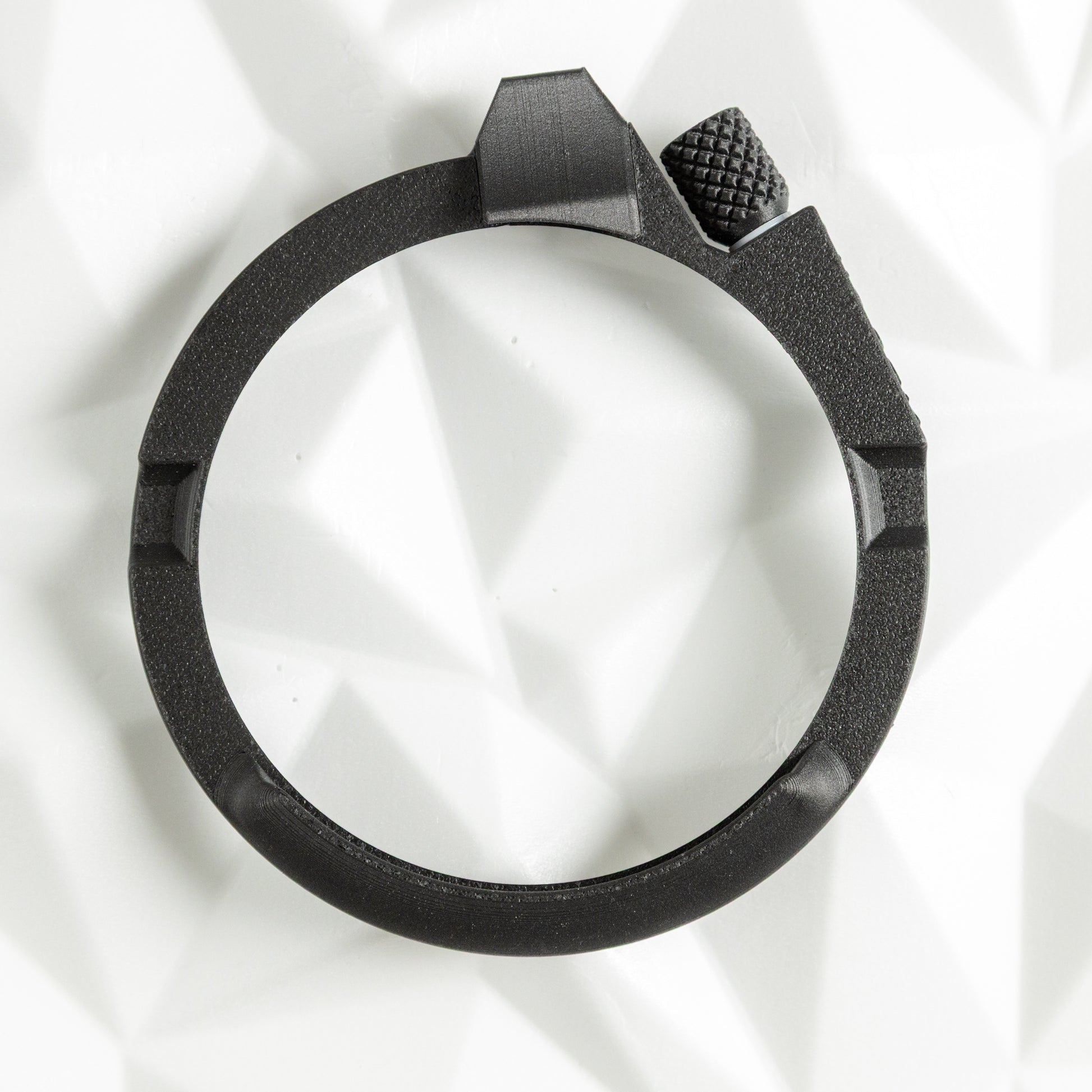

138mm Close-Up Diopter Adapter, clamp-on style. Designed for cine lenses with 136 / 125 / 120 / 114 / 110 / 104 / 100 / 95 mm front barrels, plus additional barrel sizes via the appropriate adapter ring. Adapter rings are cross-compatible with the 136mm and 114mm Matte Boxes.

Built for anamorphic shooting. The 138mm diopter is especially handy when working with anamorphic lenses, where close focus is often limited. It pairs perfectly with classic and modern anamorphics such as the Cooke Anamorphic / i 2x, Hawk V-Lite & V-Series, Lomo Square Front & Round Front, Kowa Prominar 2x, ARRI / Zeiss Master Anamorphic, Atlas Orion 2x, and Vantage / Elite sets.

The wide range of included adapter rings covers most cine and anamorphic barrels, so a single diopter serves your whole kit. Its large clear aperture lets you get extremely close to the subject without casting shadows or vignetting into frame.

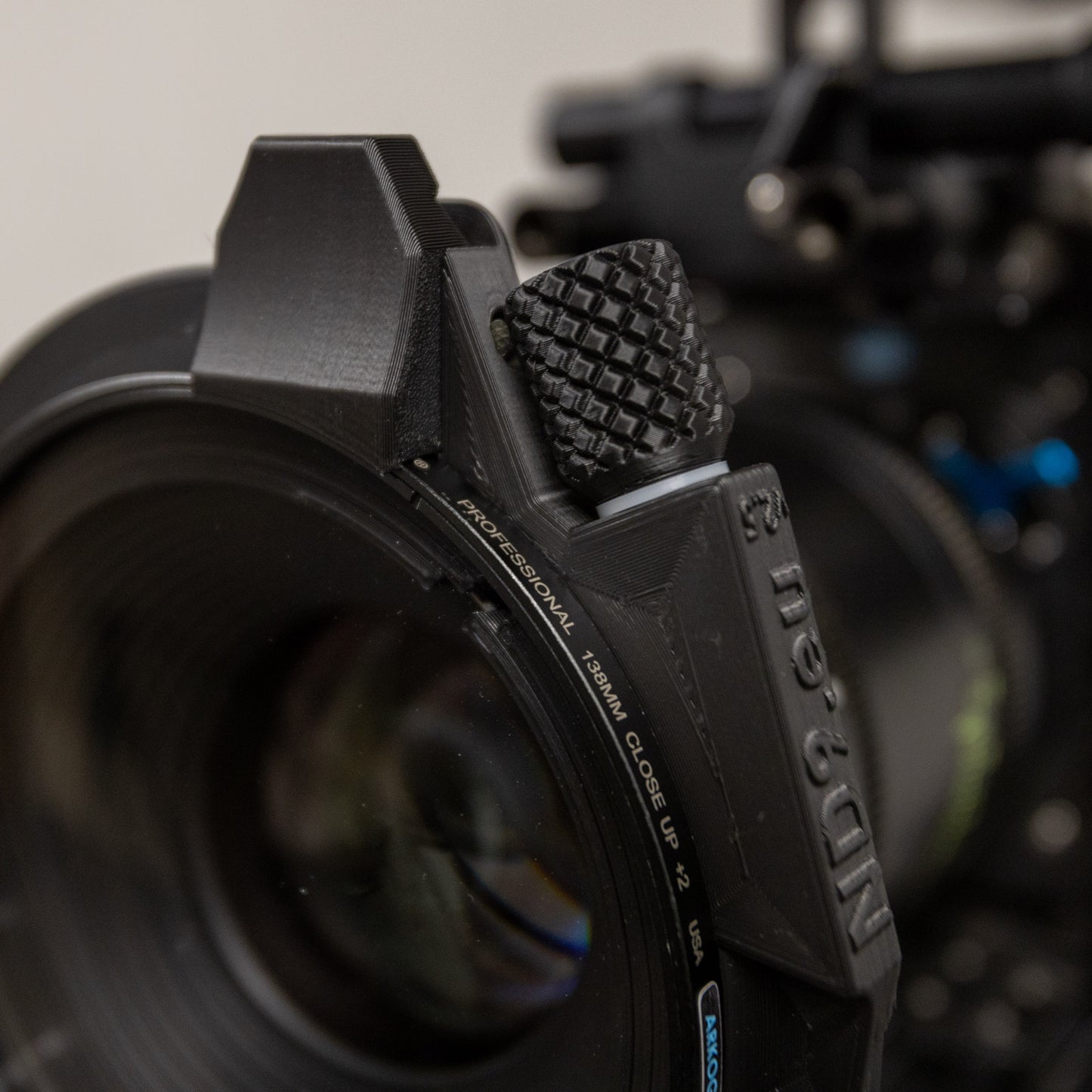

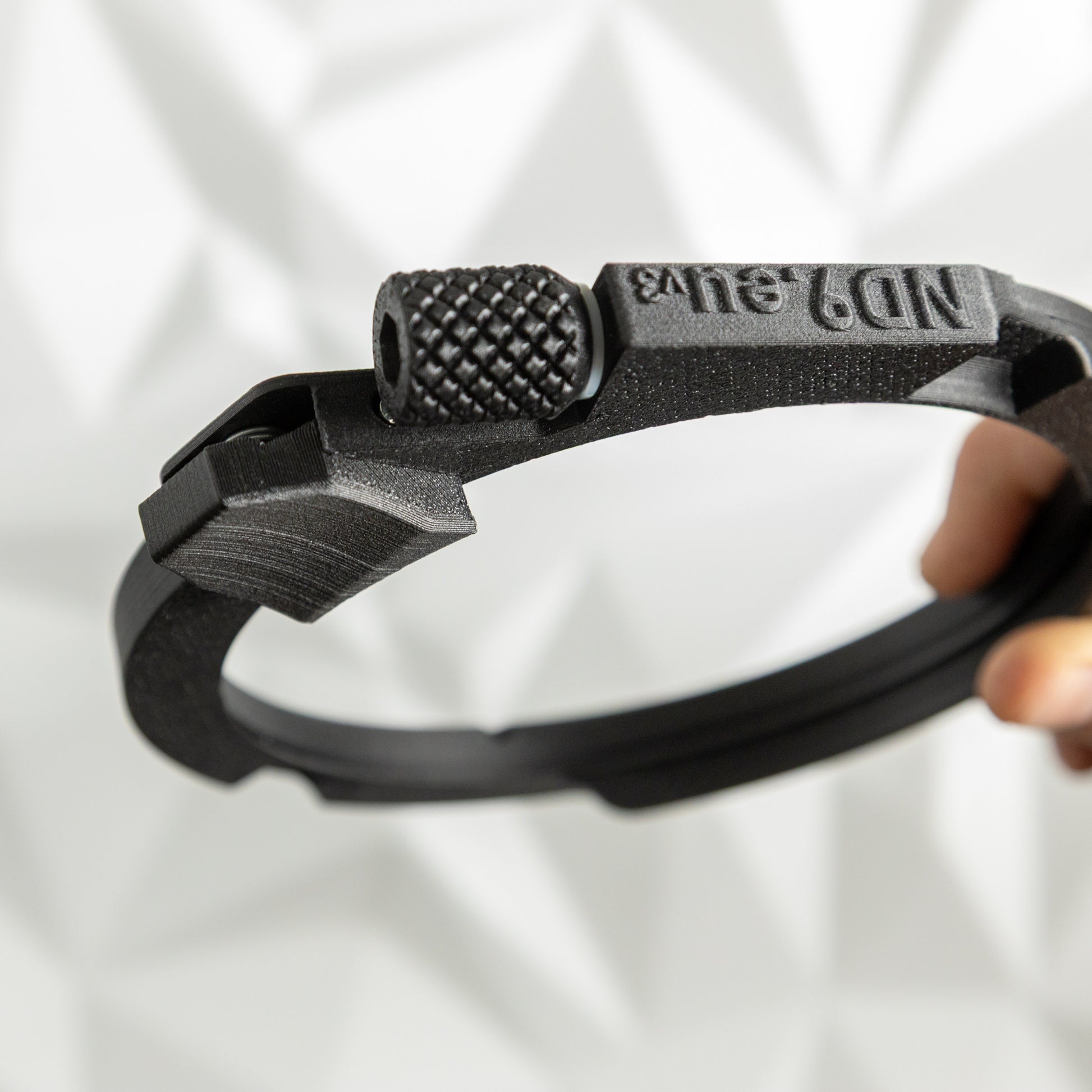

Secure the adapter on the lens by tightening the thumb screw, insert the diopter into the tray, and release the spring-loaded lever to hold it in place.

Specifications:

• Diopter adapter dimensions: 185 × 165 × 25 mm (7.3 × 6.5 × 1")
• Total weight with all adapter rings: 195 g (0.429 lb)
• Diopter adapter only (136mm): 95 g (0.21 lb)
• Package: 0.3 kg (0.66 lb), 21 × 21 × 6 cm (8.26 × 8.26 × 2.3")

INSTRUCTION MANUAL (click to view PDF)

In the box:

• 1× 138mm Diopter adapter

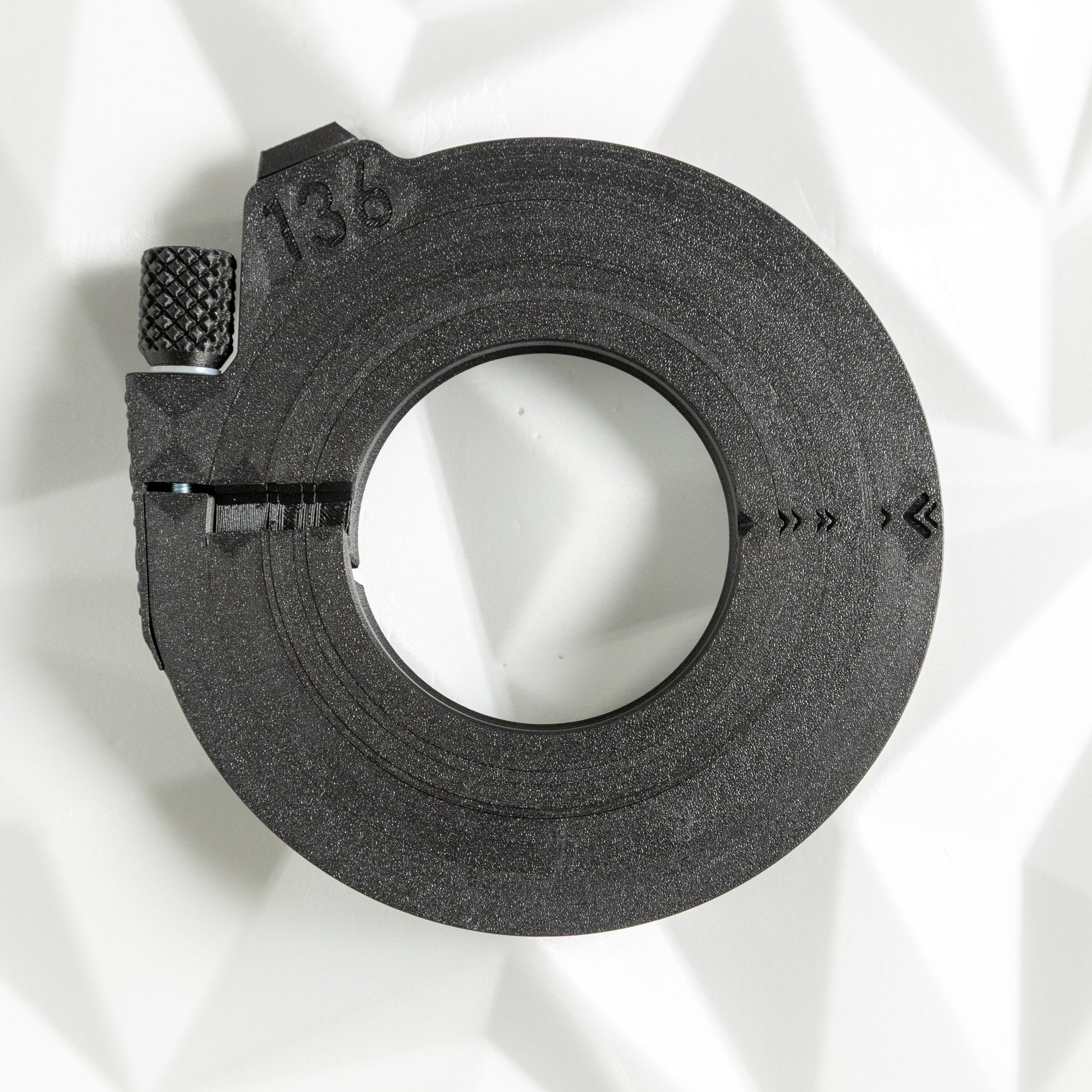

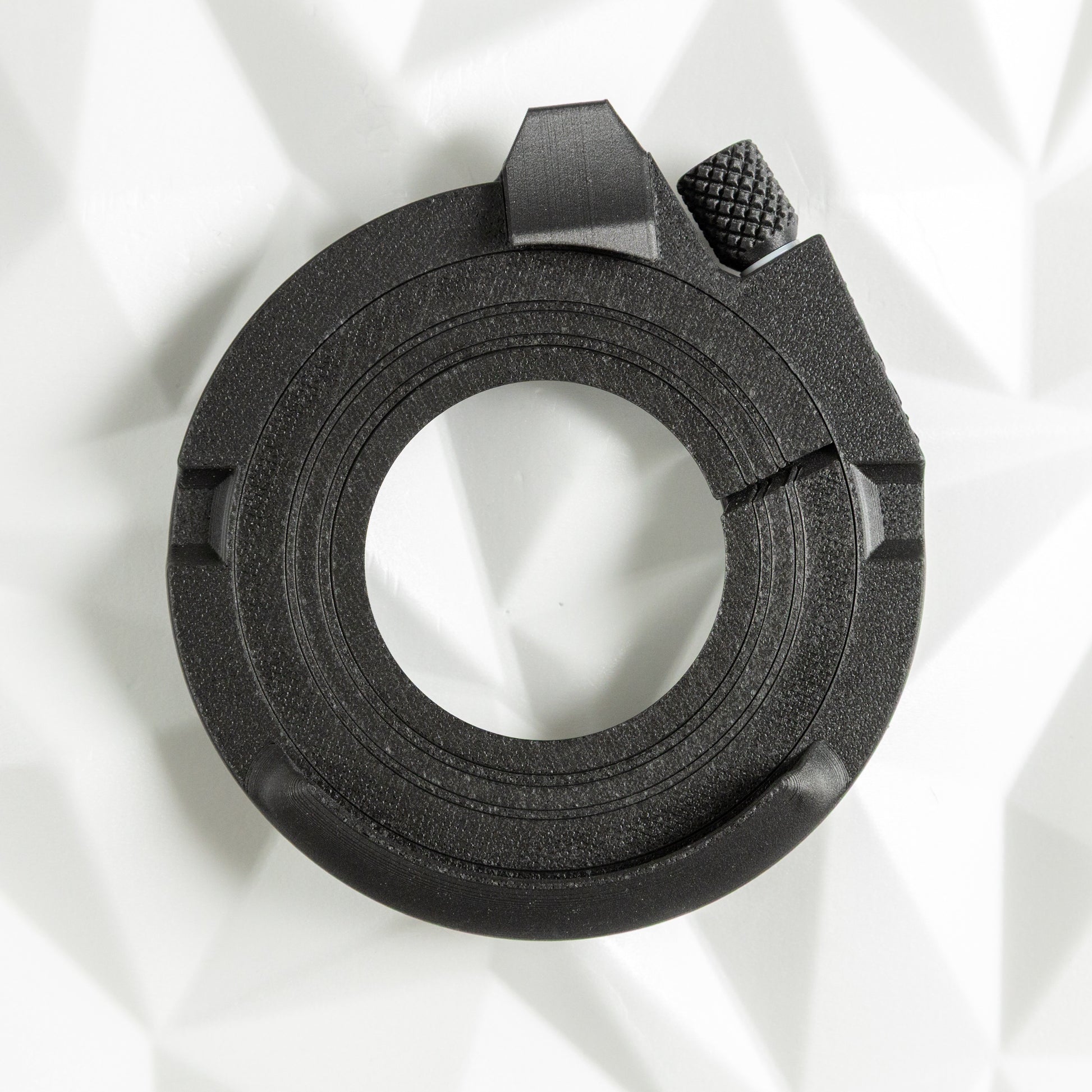

• 7× adapter rings — 136 / 125 / 120 / 114 / 110 / 104 / 100 / 95 mm
