4x5.65 Clamp-On Matte Box (114mm)

Lightweight Run-and-Gun 4x5.65 Matte Box — Quick Filter Swaps

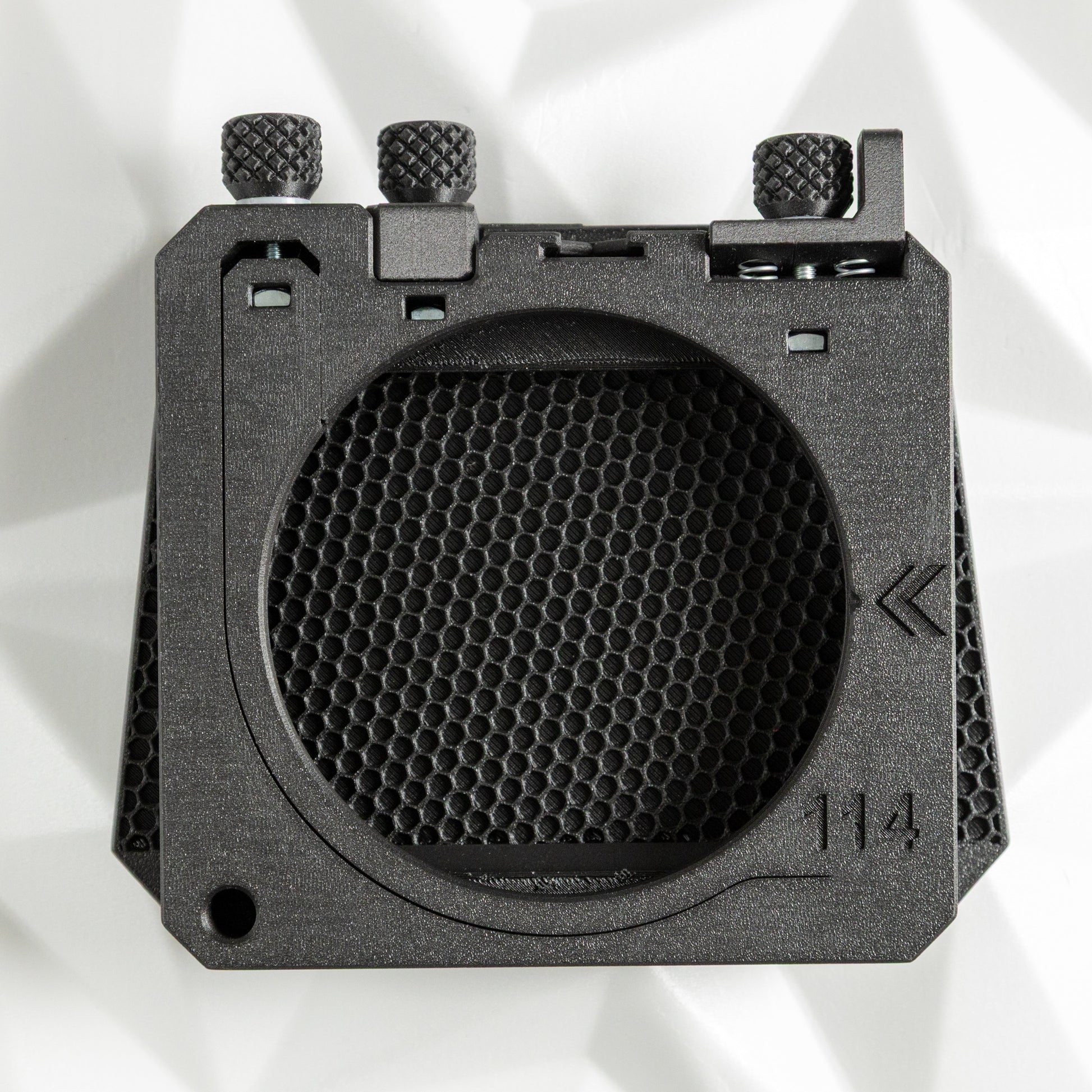

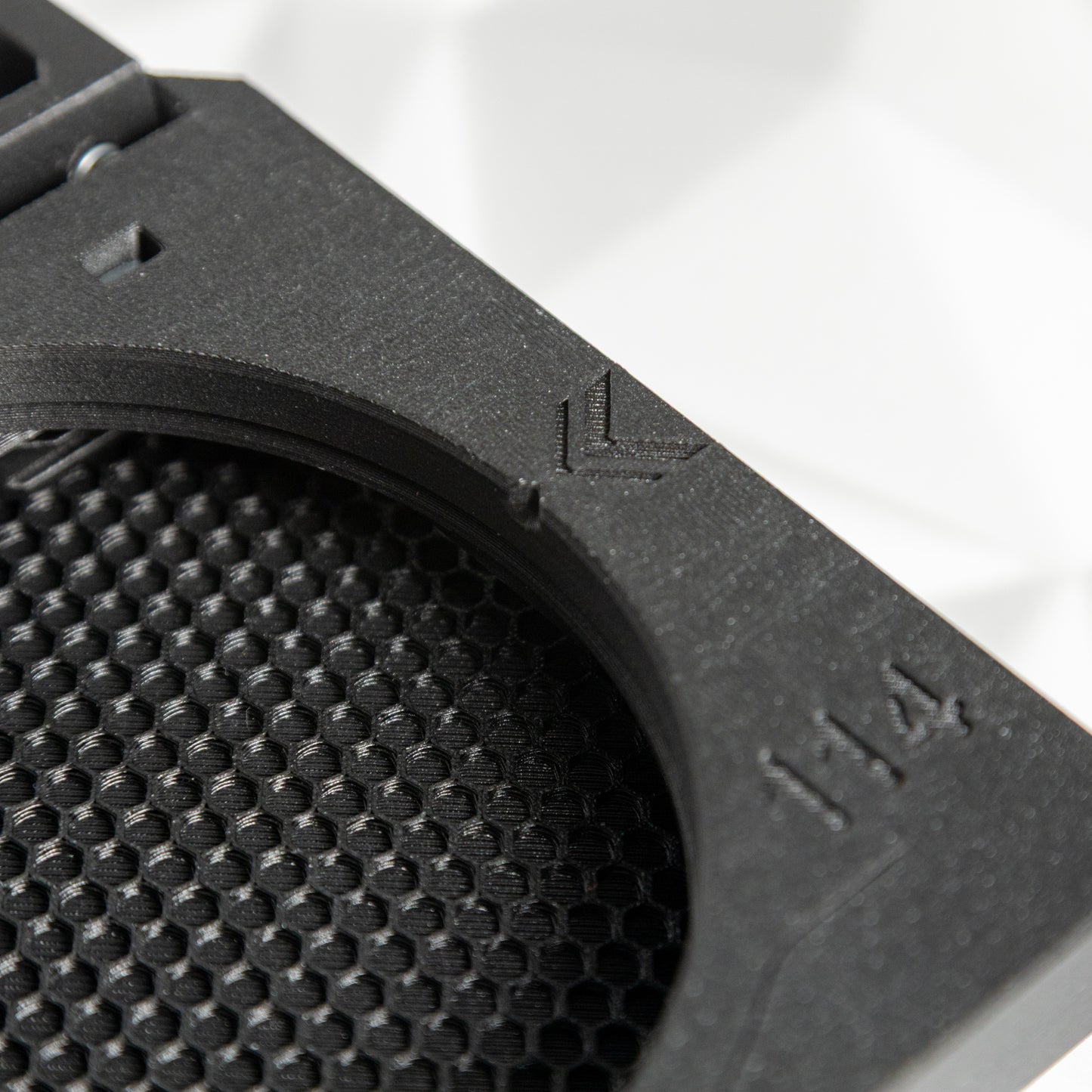

A modular 4x5.65 matte box built around a quick-release filter mechanism — drop in filters instantly without holding up production. The native 114mm clamp-on backing and ultra-light carbon-fiber polymer build deliver pro-level light control and dual-filter capacity while keeping payload low.

Built for wide-angle lenses — no vignetting. The 114mm clamp and optimised front opening are designed to stay clear of the frame on wide and ultra-wide cine glass, giving clean, vignette-free 4x5.65 coverage where bulkier matte boxes cut into the corners. Proven on wide lenses such as the Laowa 12mm and DZOFilm 80mm, plus most 114 / 110 / 100 / 95 / 80mm barrels via the stackable adapter rings.

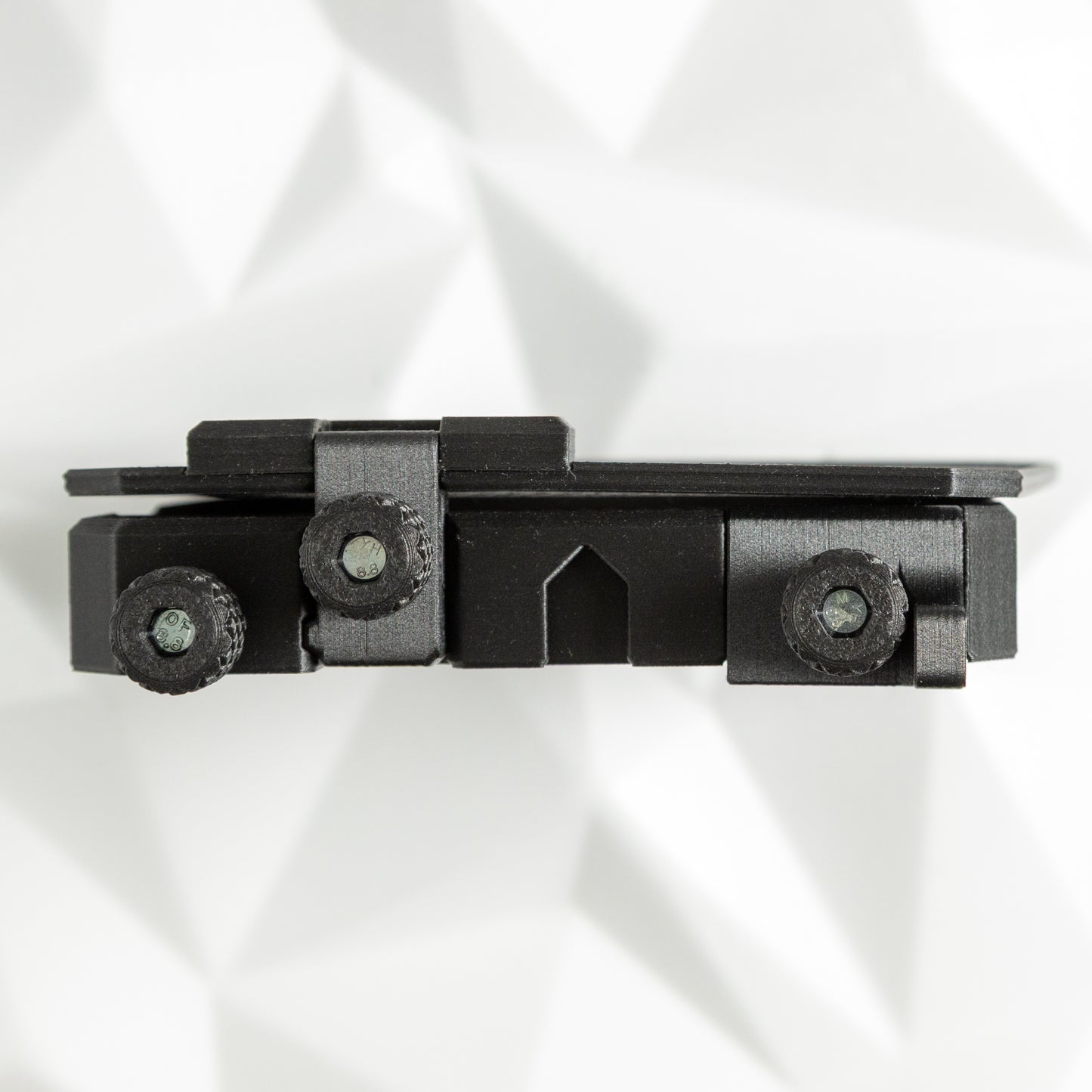

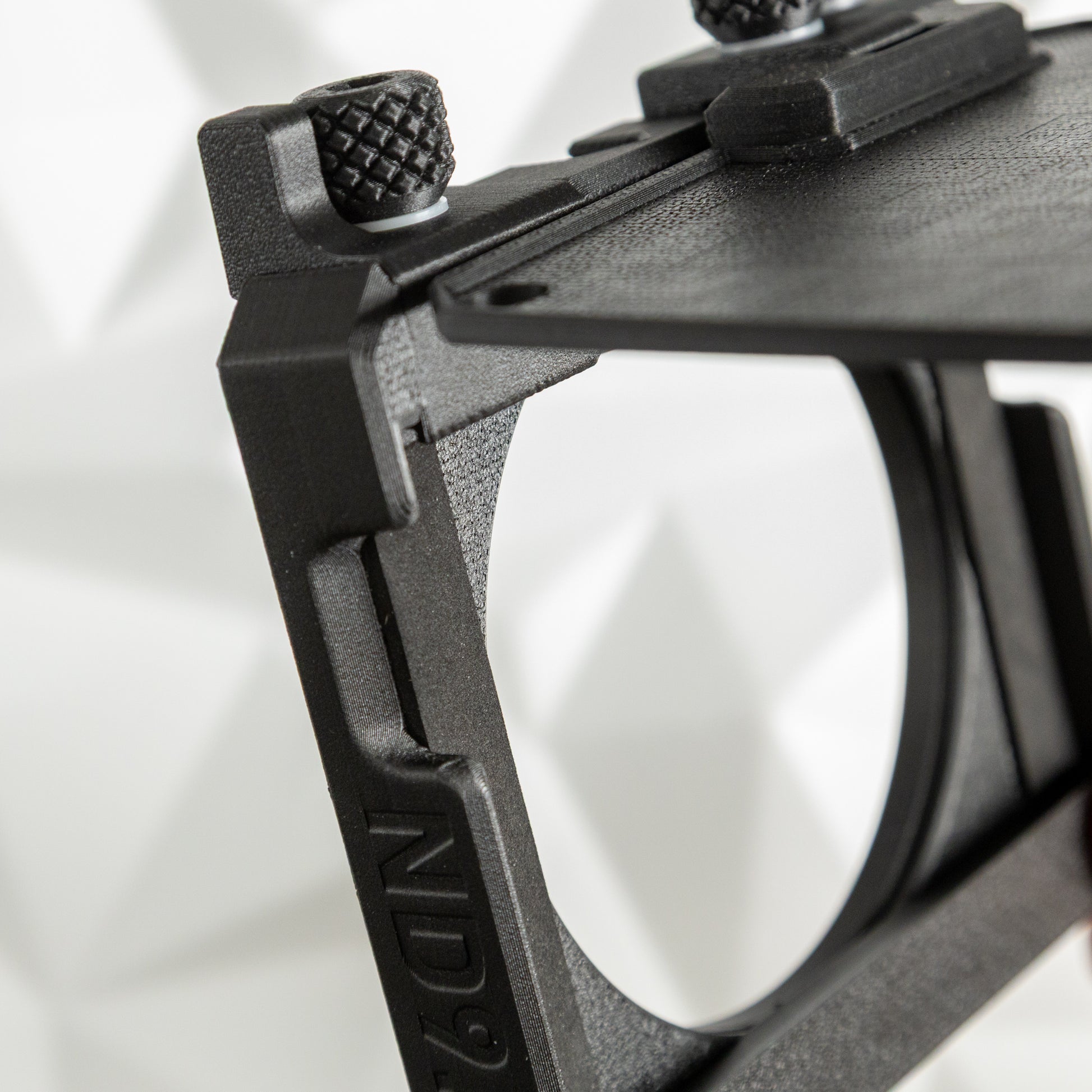

• Quick-release filter clamp: dual-action thumb screw — engage the spring-loaded lever for instant hot-swaps, or tighten fully to lock filters during action shots.

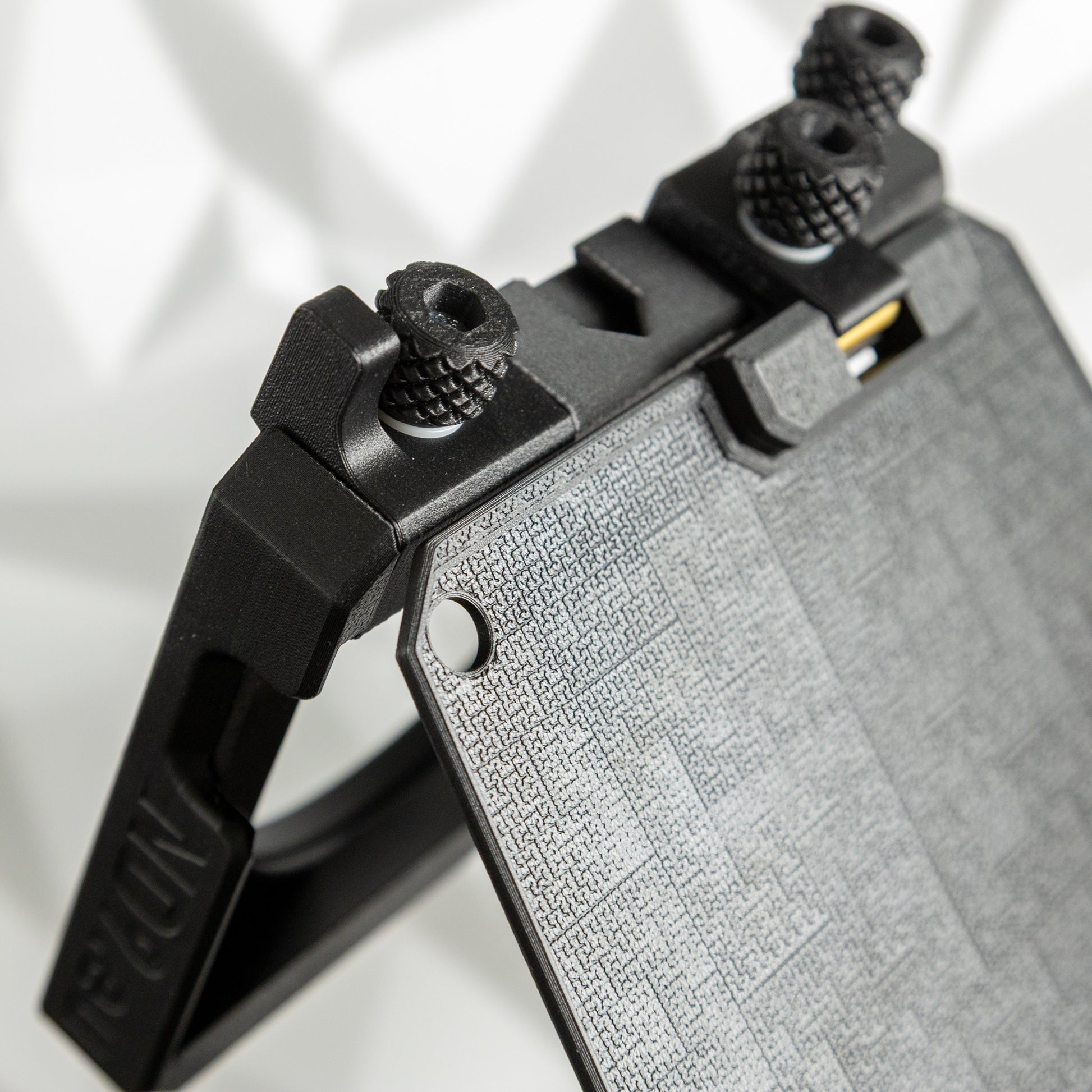

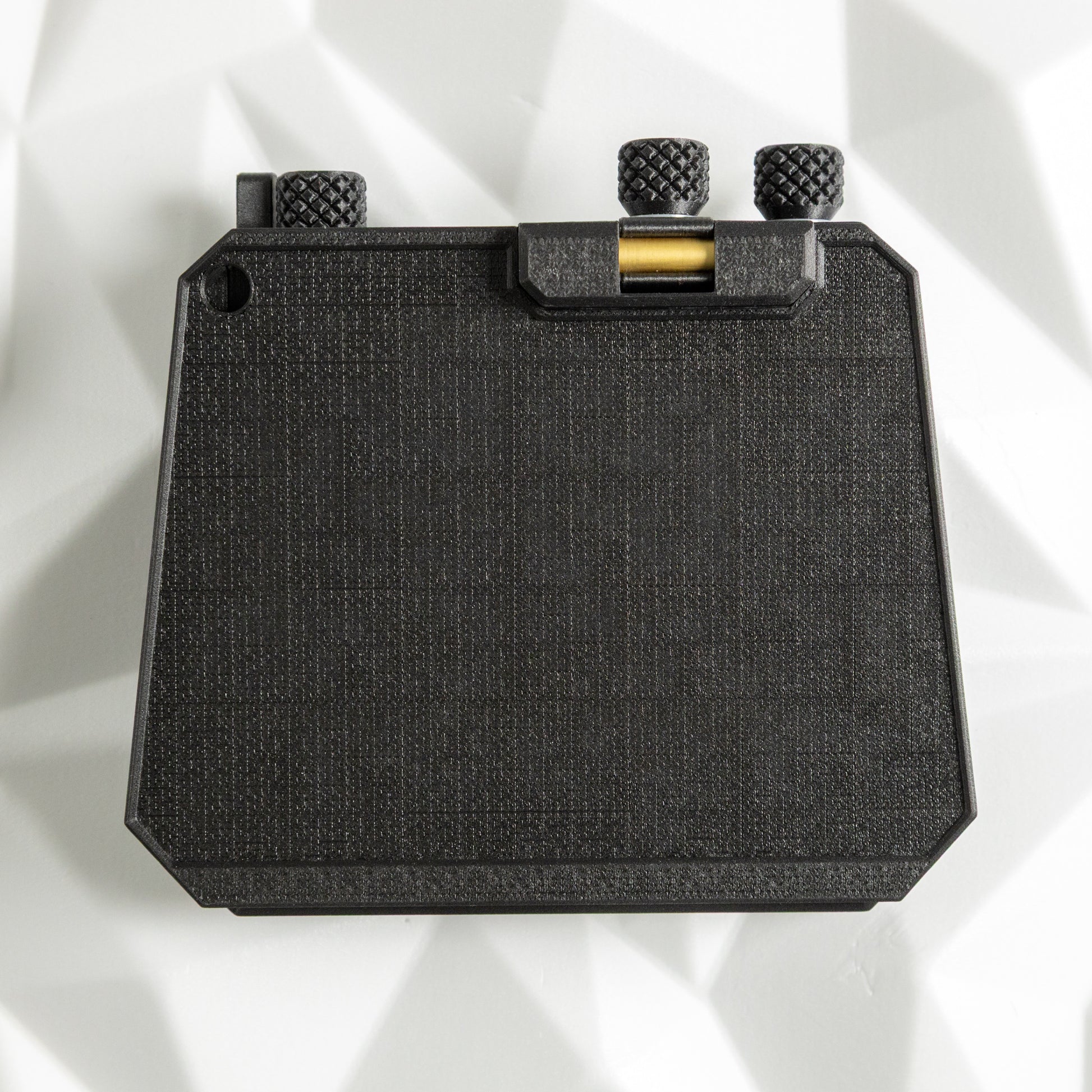

• Modular top flag: pop the flag off via its own quick-release thumb screw, or remove the entire flag assembly to strip weight further.
• Stackable adapter ring system: seamless compatibility across your entire cine lens set.
• Lightweight: from just 145g for the body — easy on gimbal motors, Steadicam sleds, and drones.

Select your setup (3 variations):

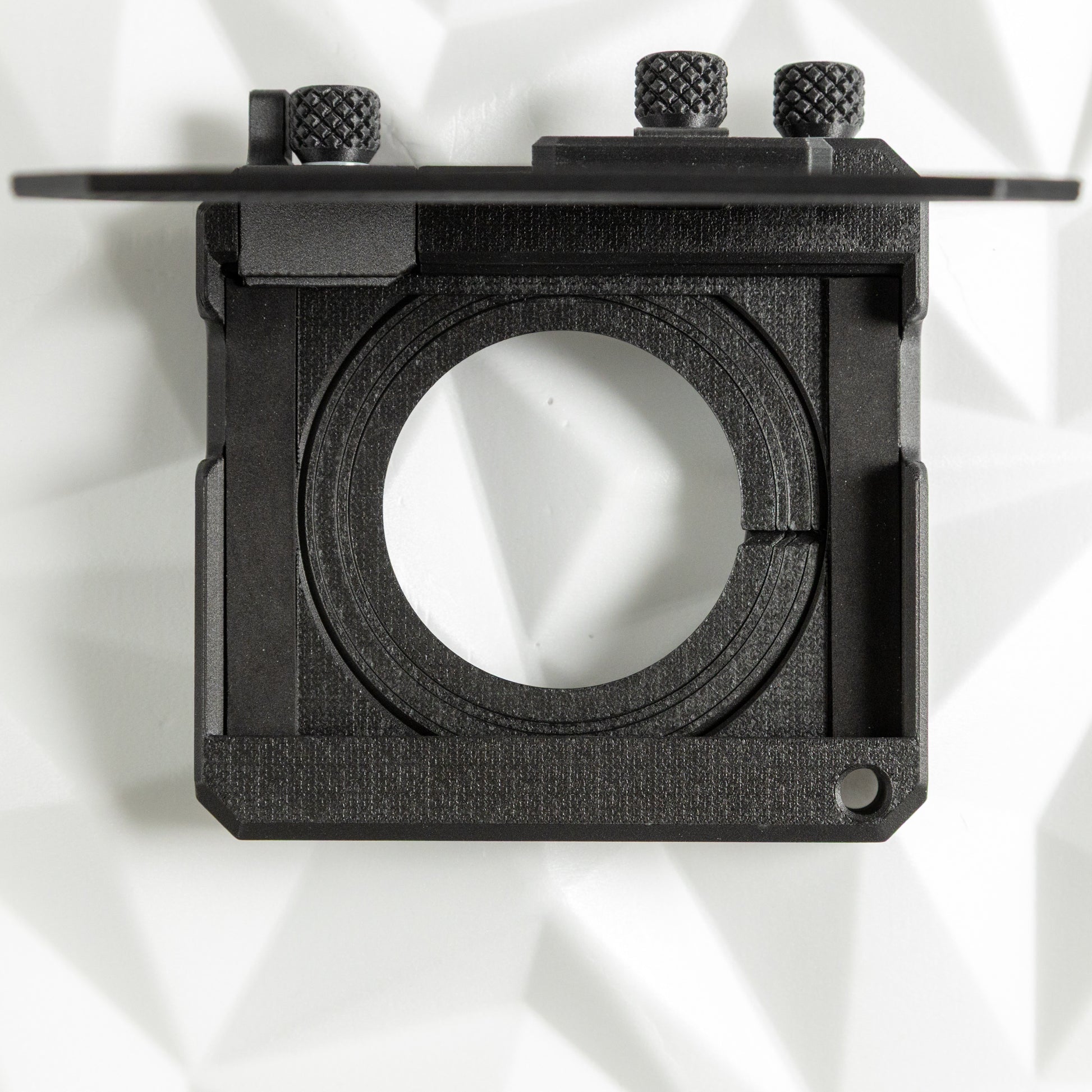

• Full kit (265g): matte box body, removable top flag, 4 stackable adapter rings (110 / 100 / 95 / 80mm).

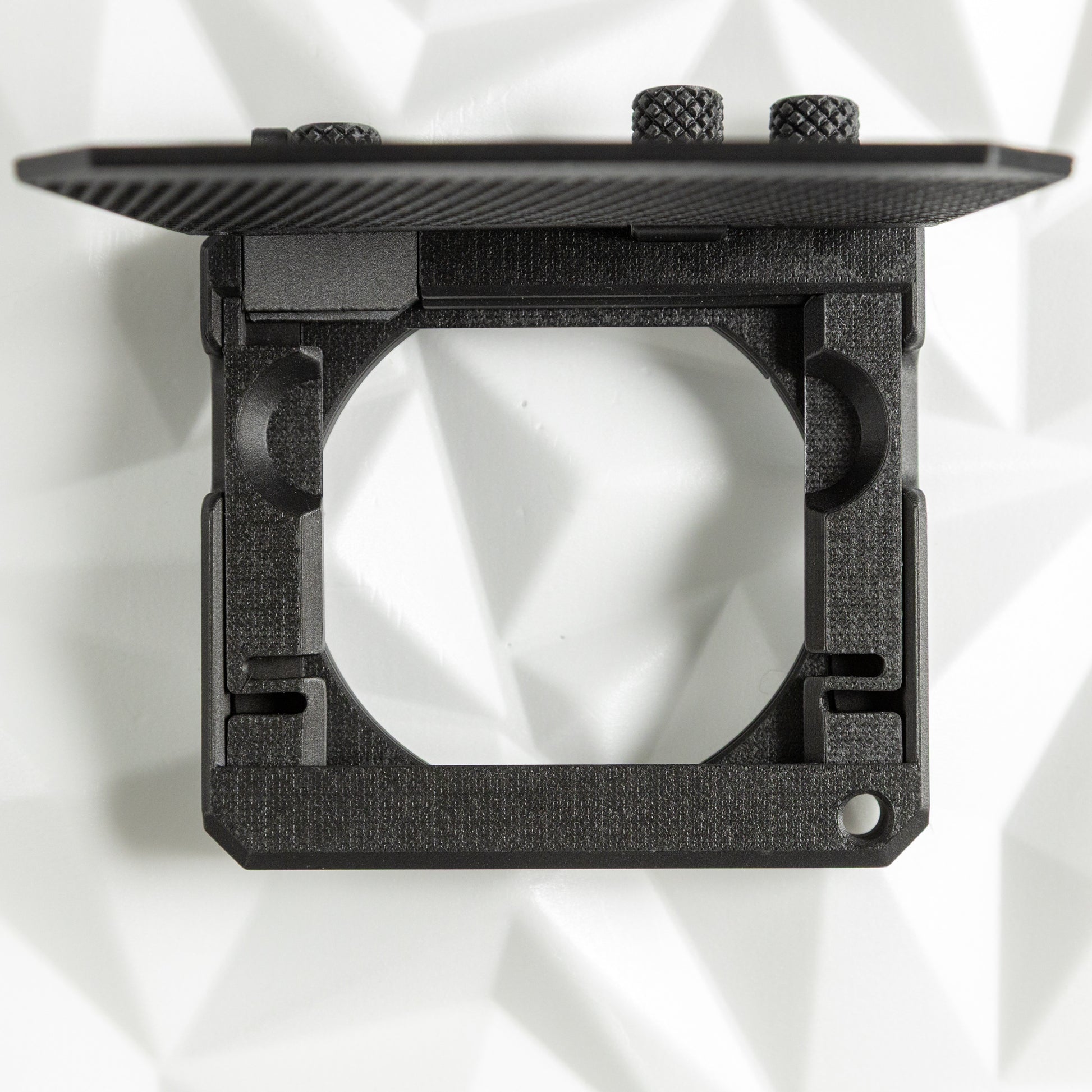

• Matte box with flag (215g): native 114mm body + quick-release top flag.

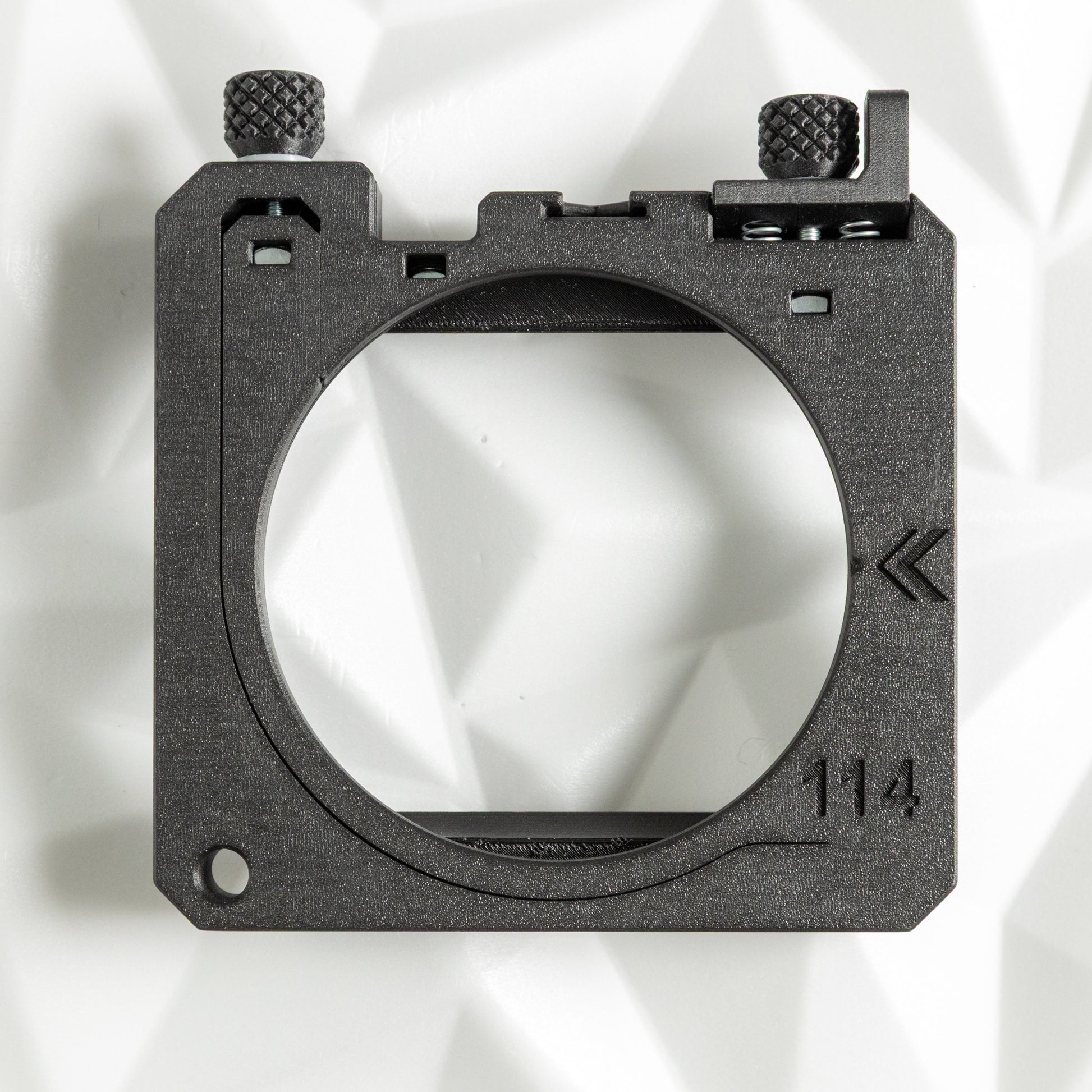

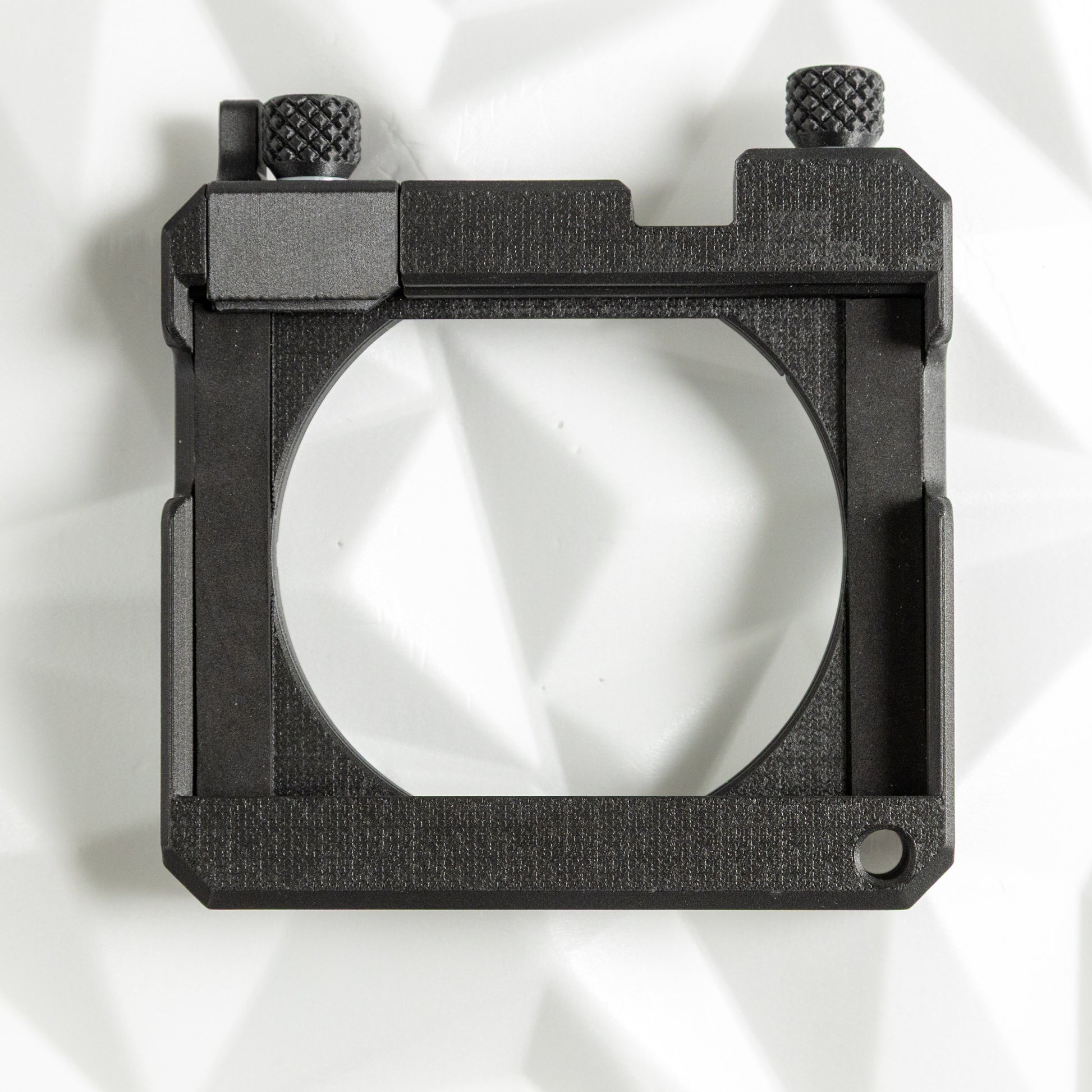

• Body only (145g): stripped-down native 114mm body for the lightest setup.

Specifications:

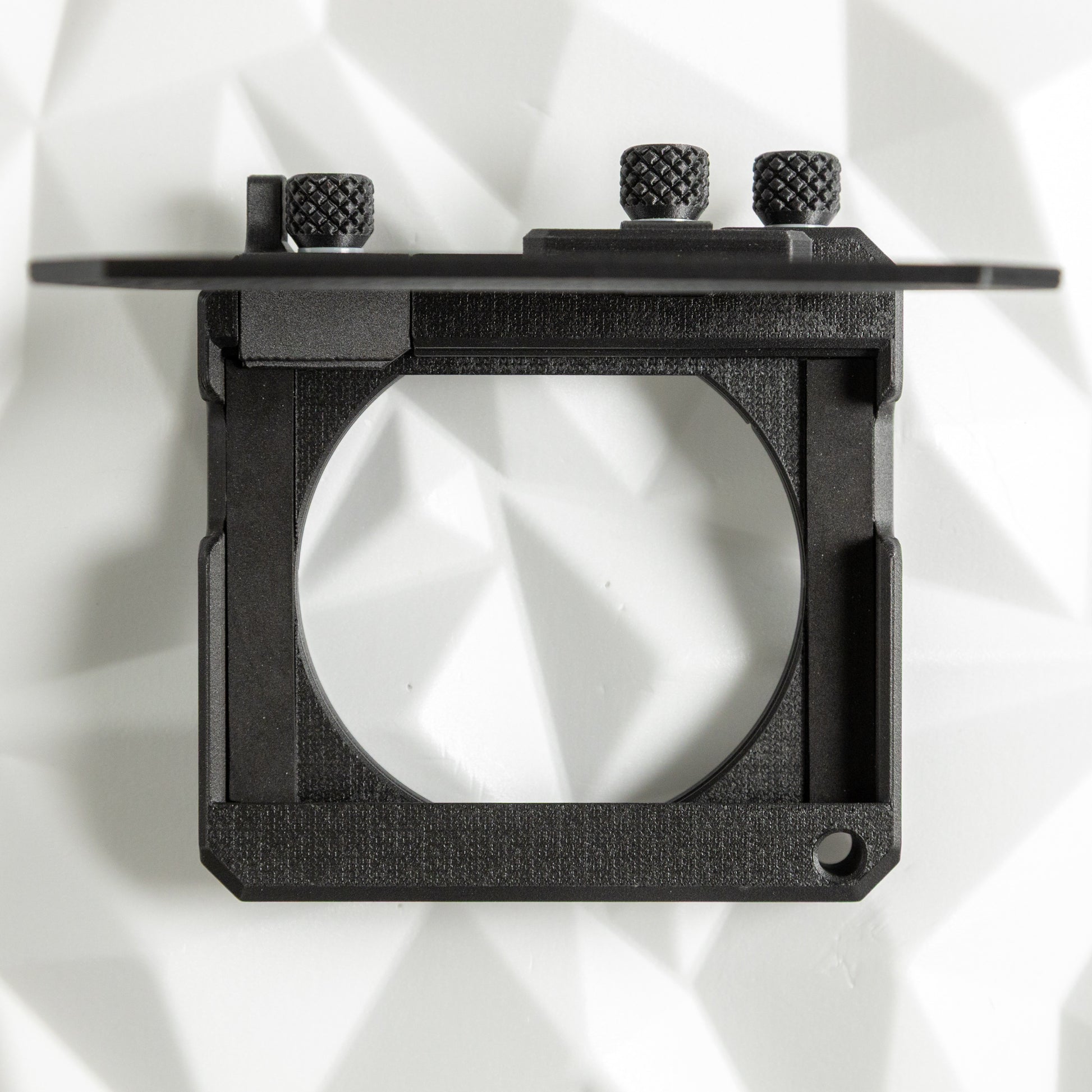

• Filter capacity: 2× 4" x 5.65" filters

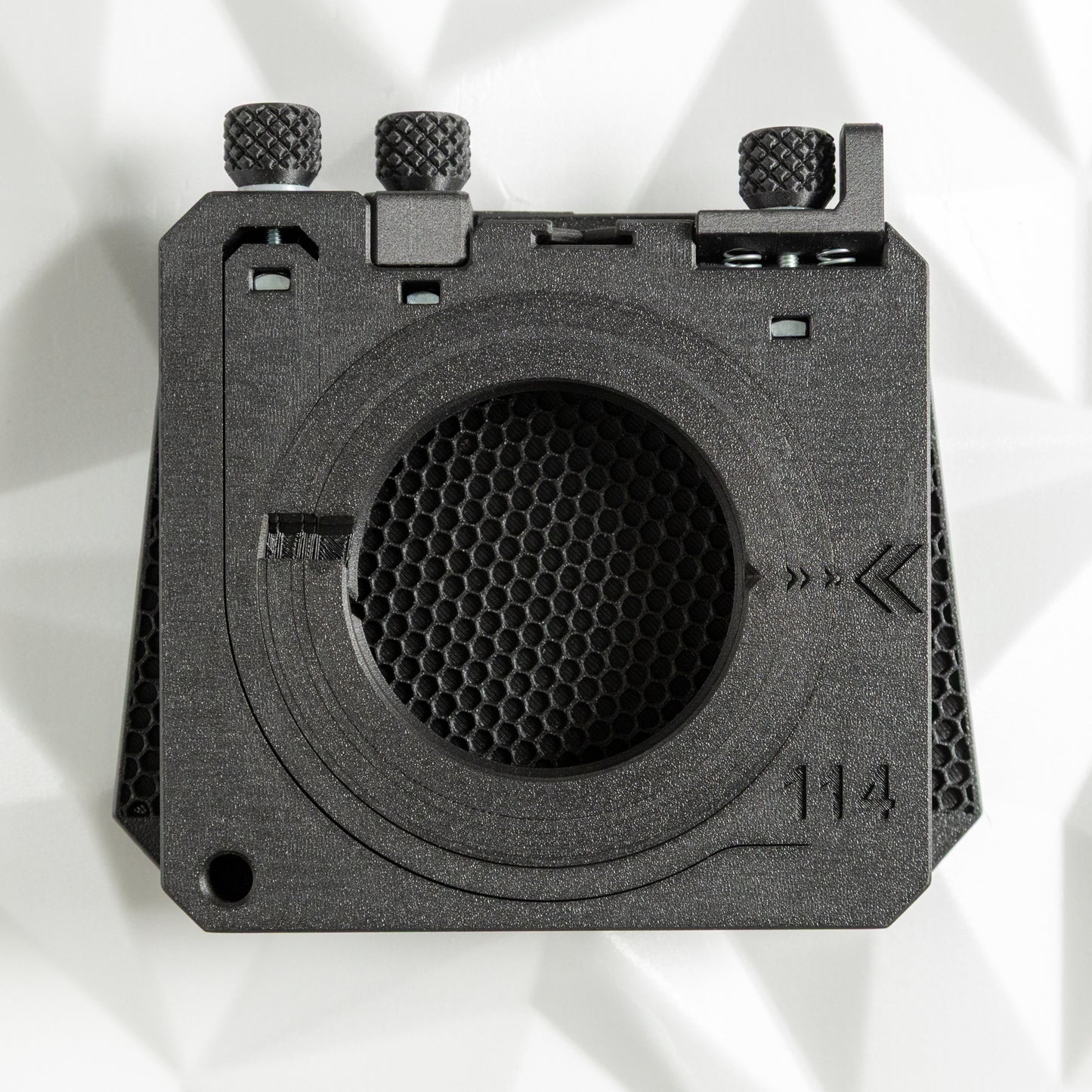

• Native mount: 114mm clamp-on
• Material (black): Polymaker PET-CF17 (carbon-fiber reinforced PET)
• Dimensions (body only): 155 × 166 × 32 mm (6.1 × 6.5 × 1.2")
• Dimensions (with flag): 185 × 166 × 40 mm (7.3 × 6.5 × 1.6")
