Large-Format 4x5.65 Matte Box (136mm)

Large-Format 4x5.65 Quick-Release Matte Box (136mm)

Built to handle large cinema zooms and wide-diameter anamorphic lenses with minimal extra weight. This 136mm native clamp-on matte box features a quick-release filter mechanism that lets operators drop in filters instantly.

Wide-angle anamorphic compatible. The large 136mm front and comprehensive ring kit are ideal for wide anamorphic glass, including the Cooke Anamorphic/i 2x 35mm and 1.8x FF, Hawk V-Lite & V-Series, Atlas Orion 2x, and other large-diameter anamorphic and spherical cine lenses.

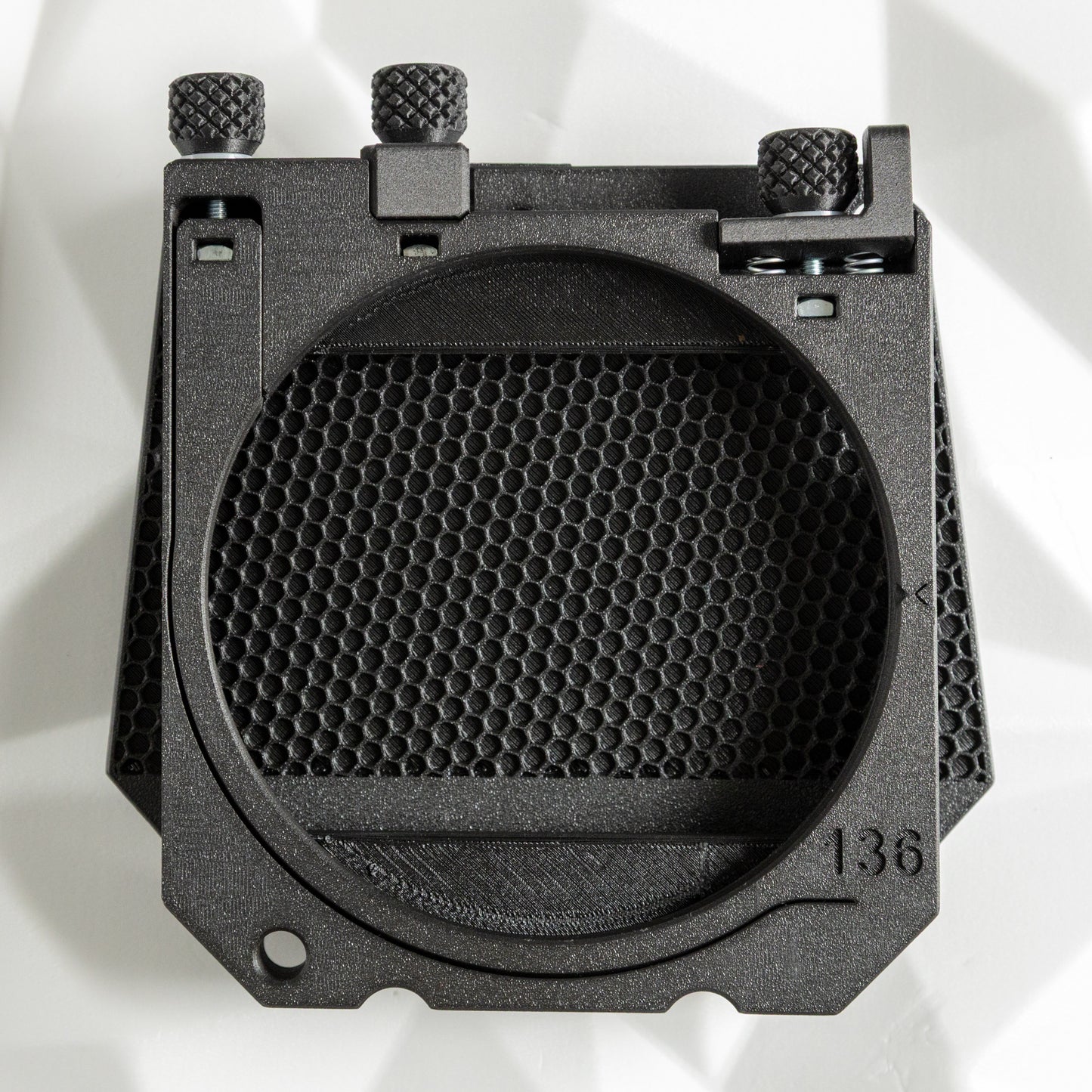

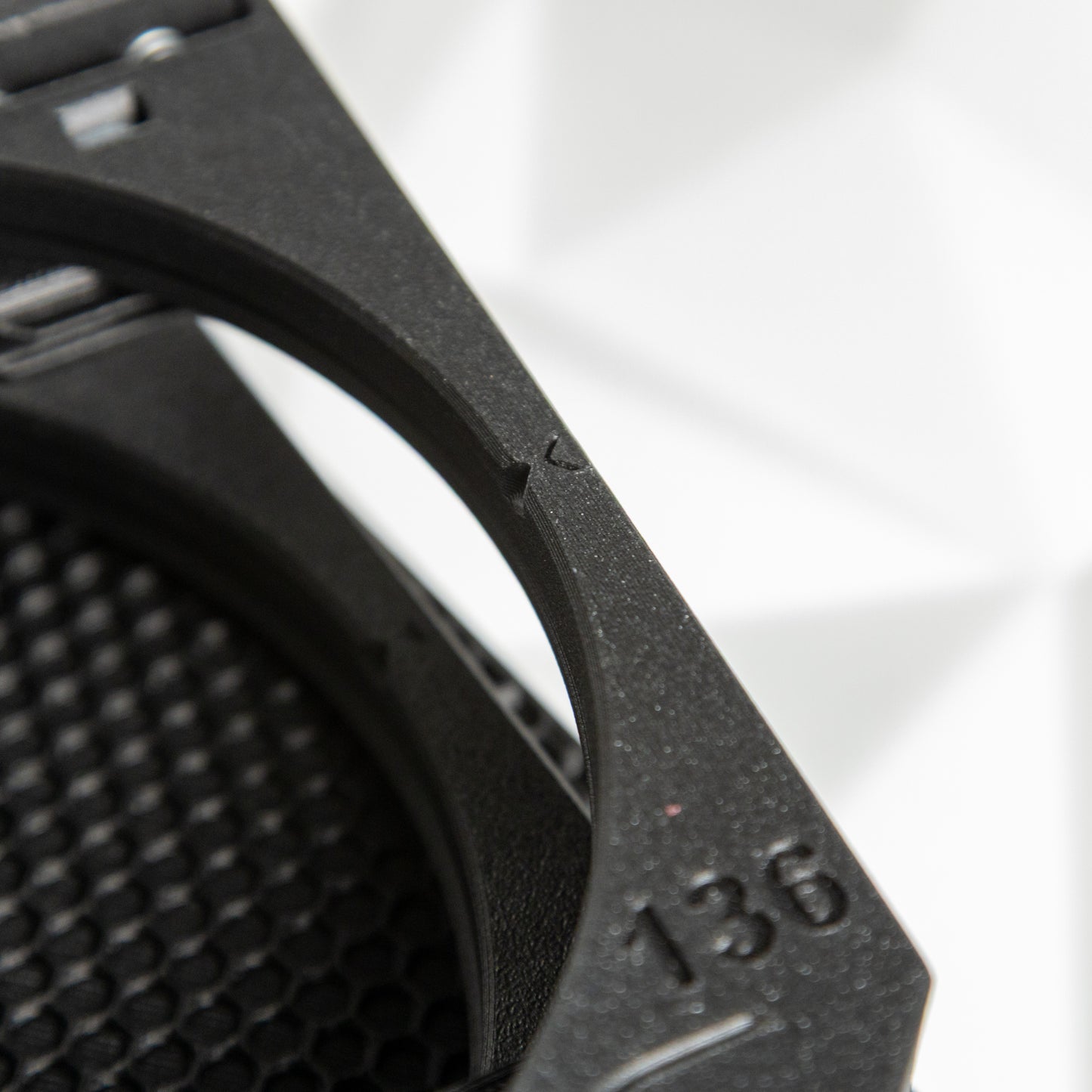

• Massive 136mm native clamp: mounts directly onto large-diameter cine lenses, keeping the rig streamlined. Adapter-ring compatible.

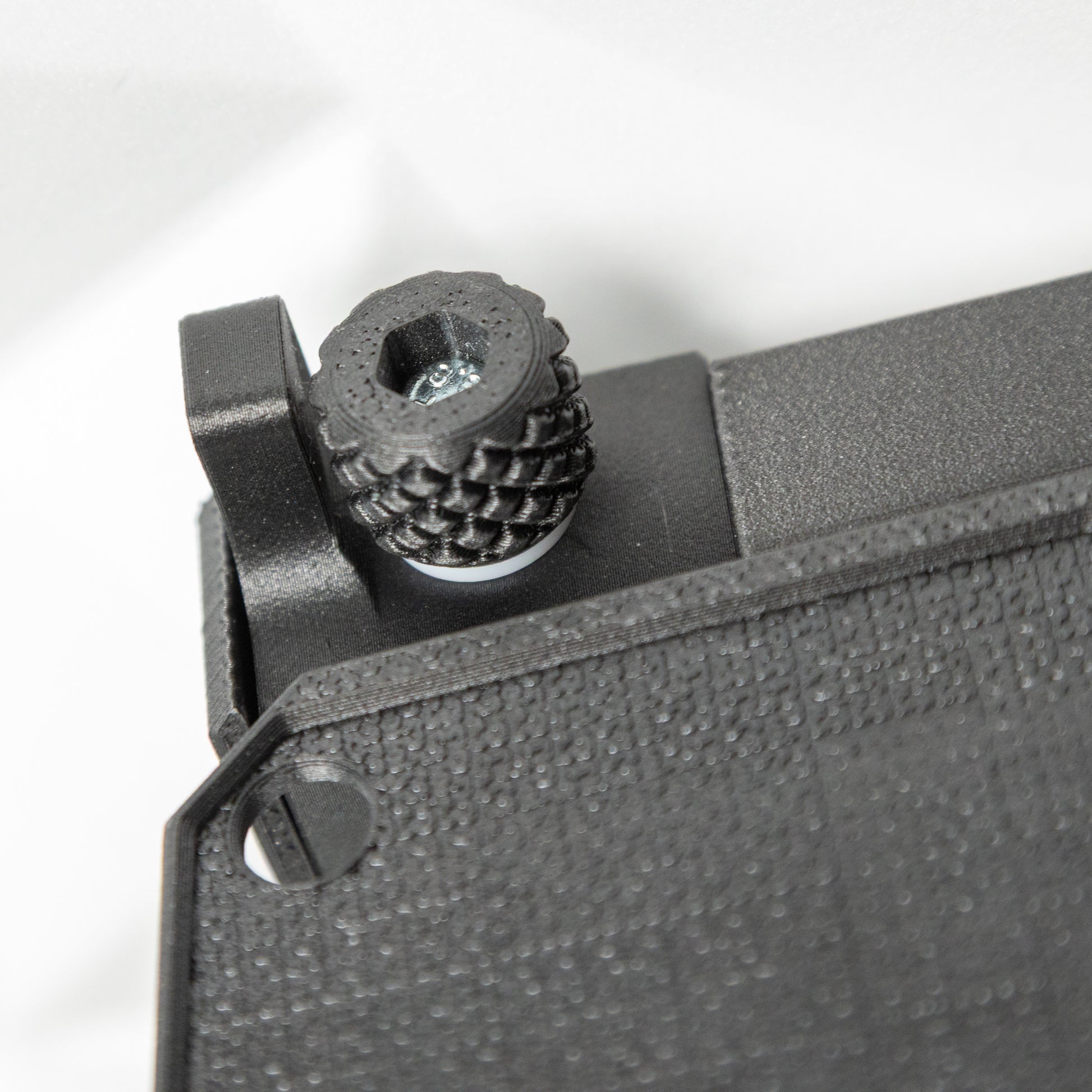

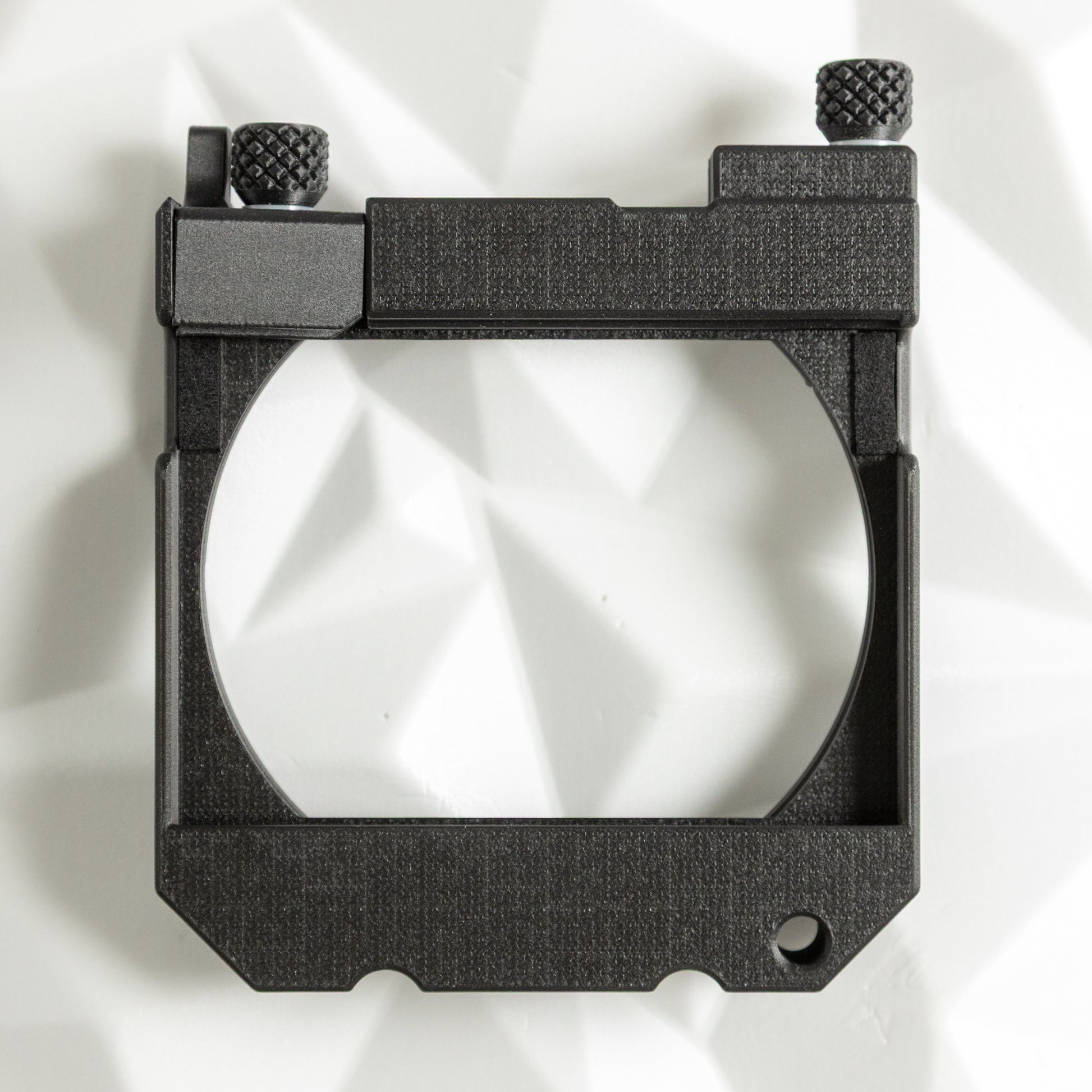

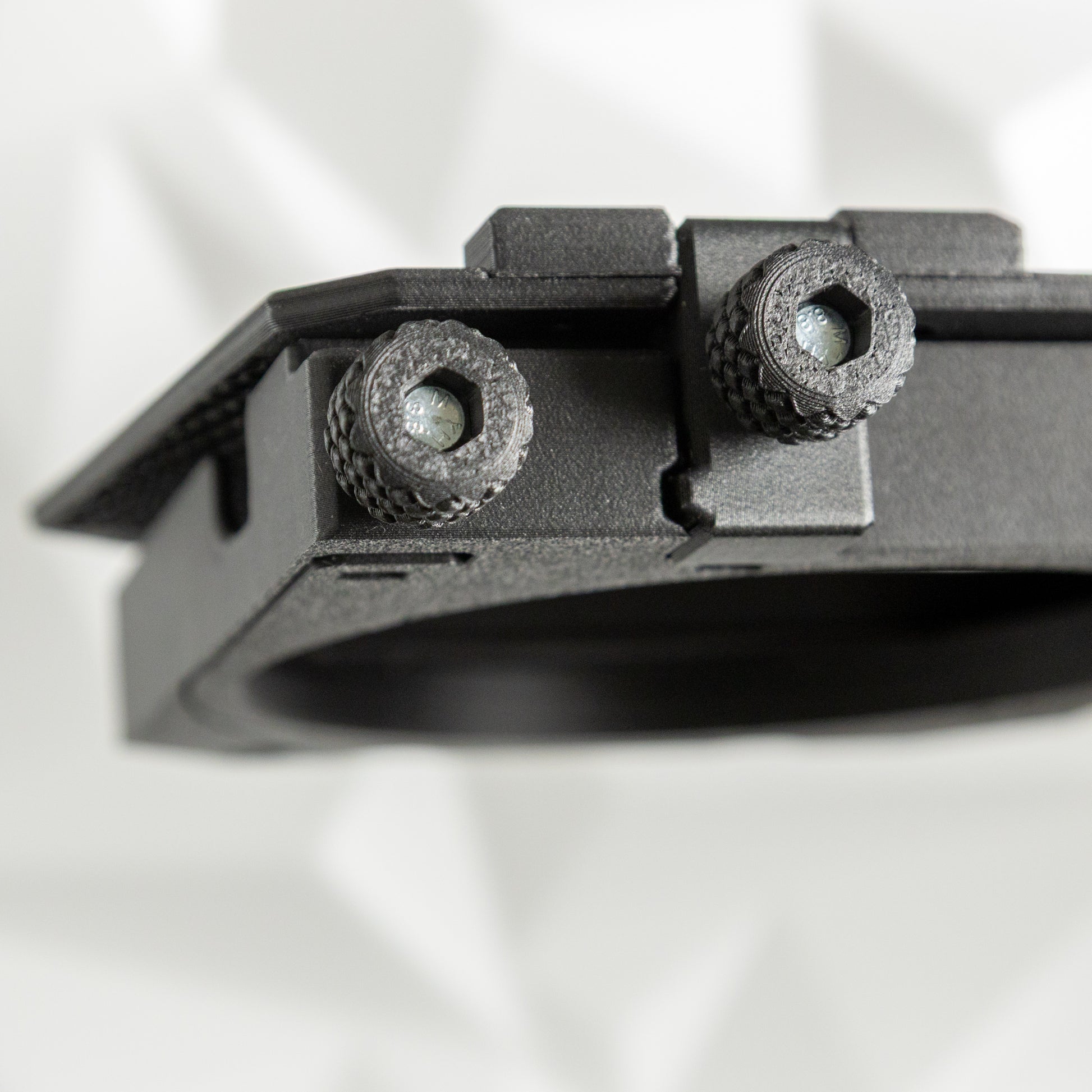

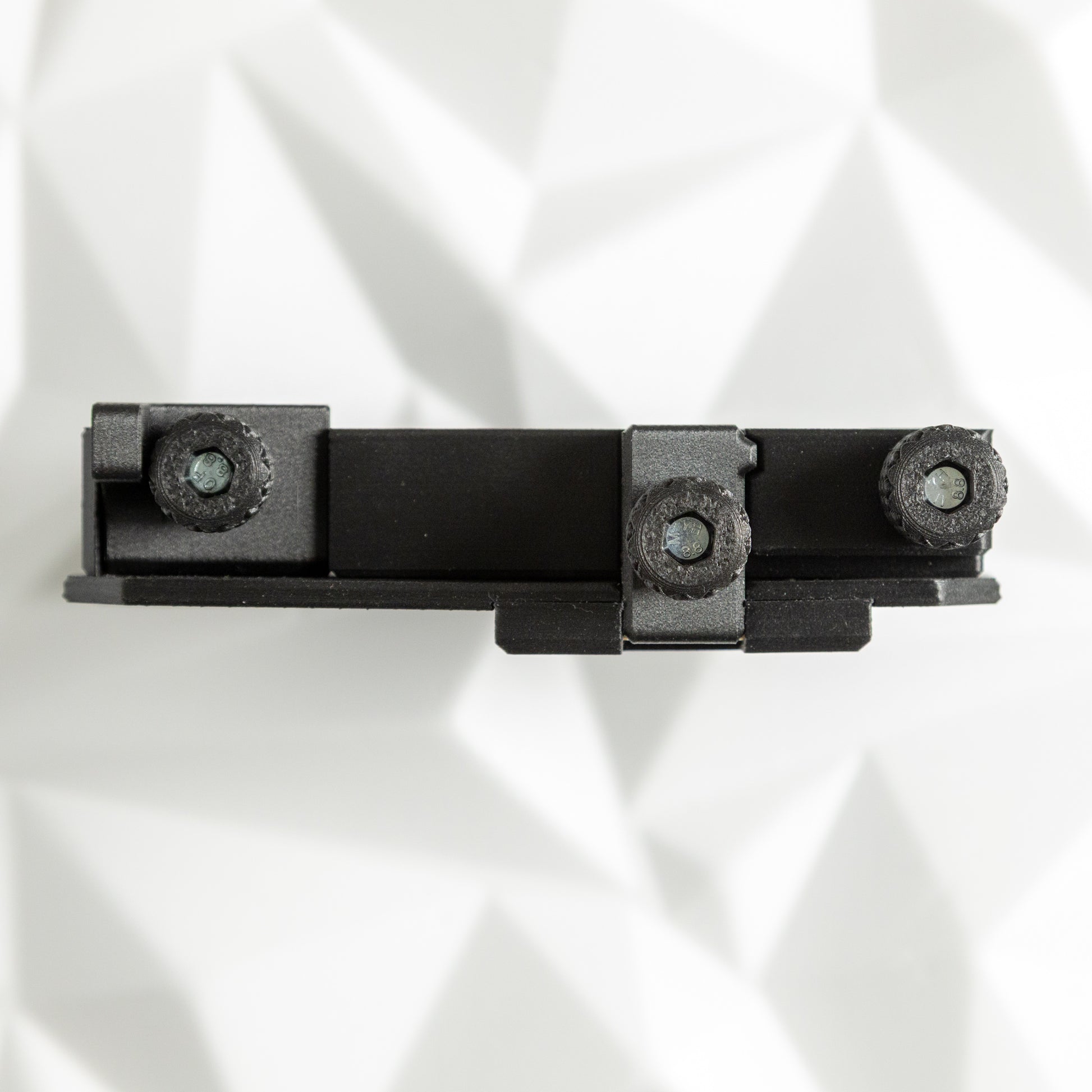

• Rapid-release filter clamp: dual-action thumb screw — engage the spring-loaded lever for instant hot-swaps, or tighten fully to lock filters during tracking shots.

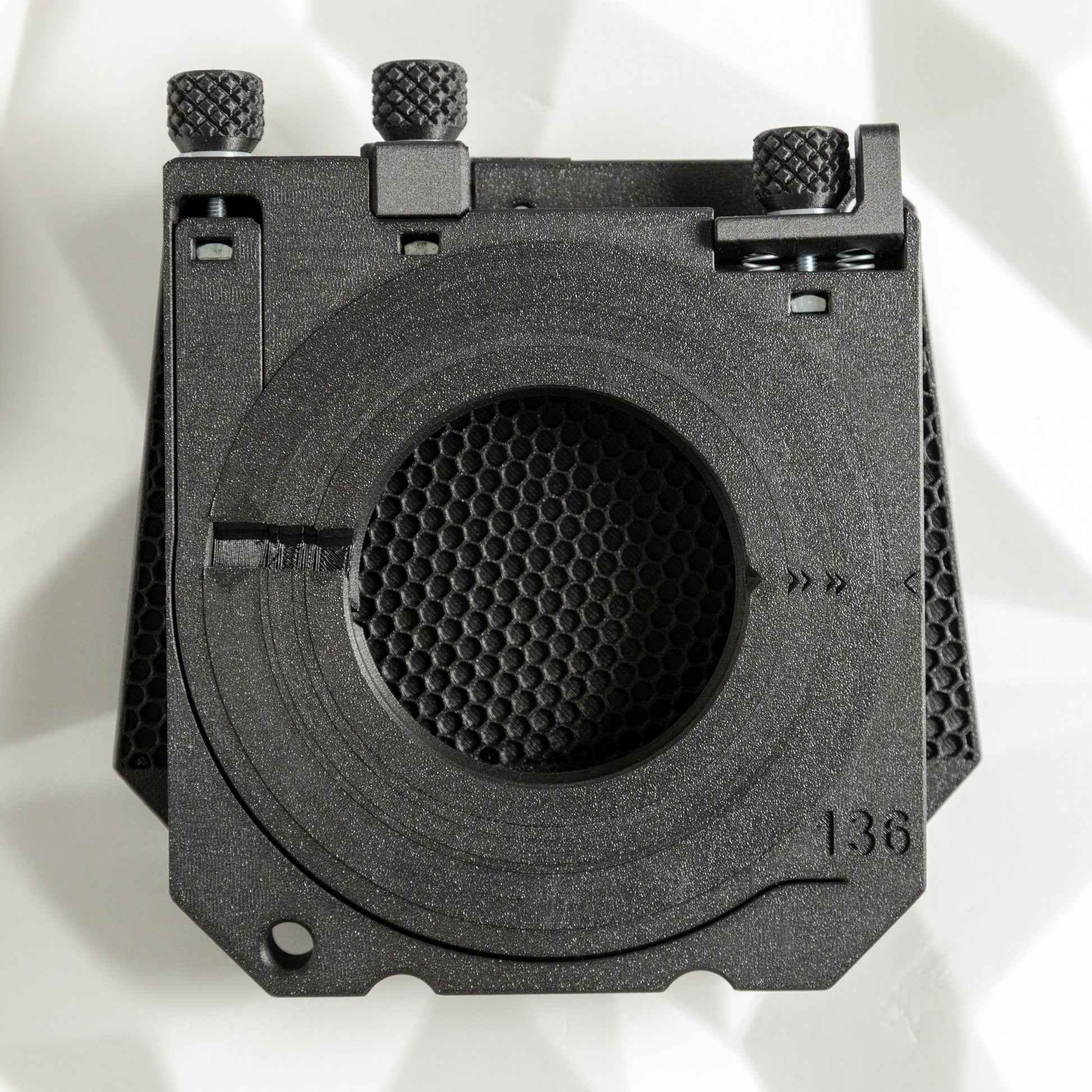

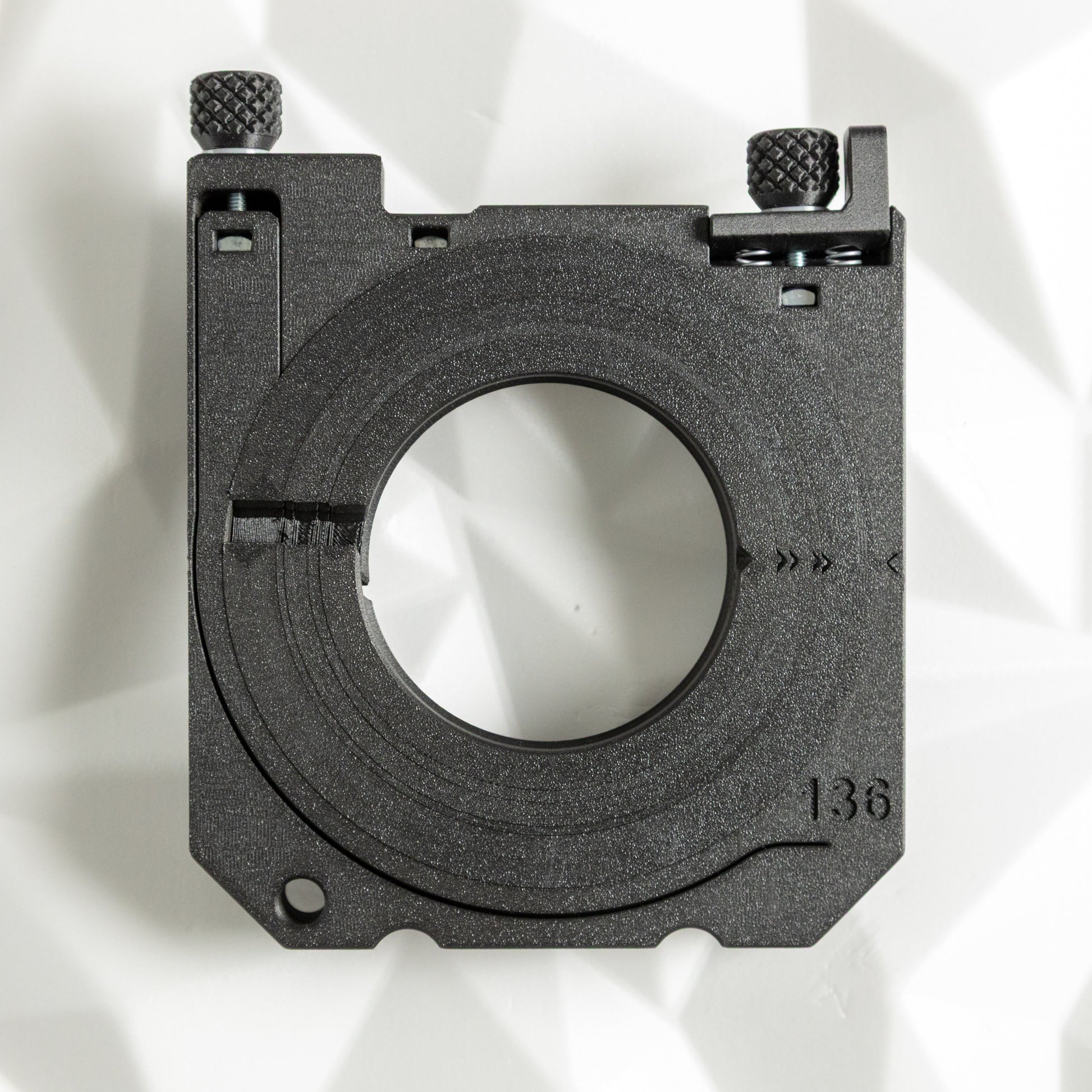

• Wide lens coverage: the 7-step adapter kit (125mm to 95mm) works across your entire lens library.

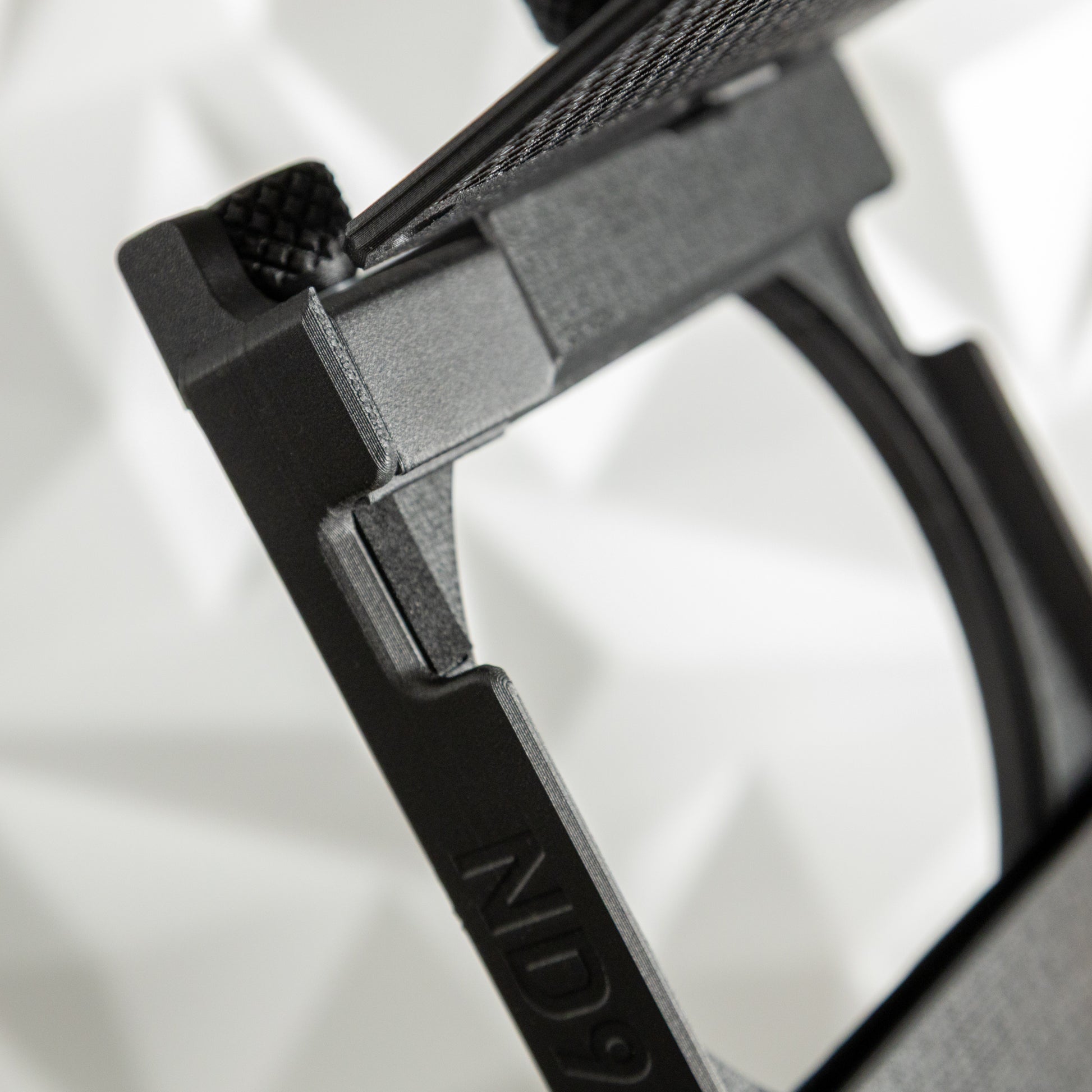

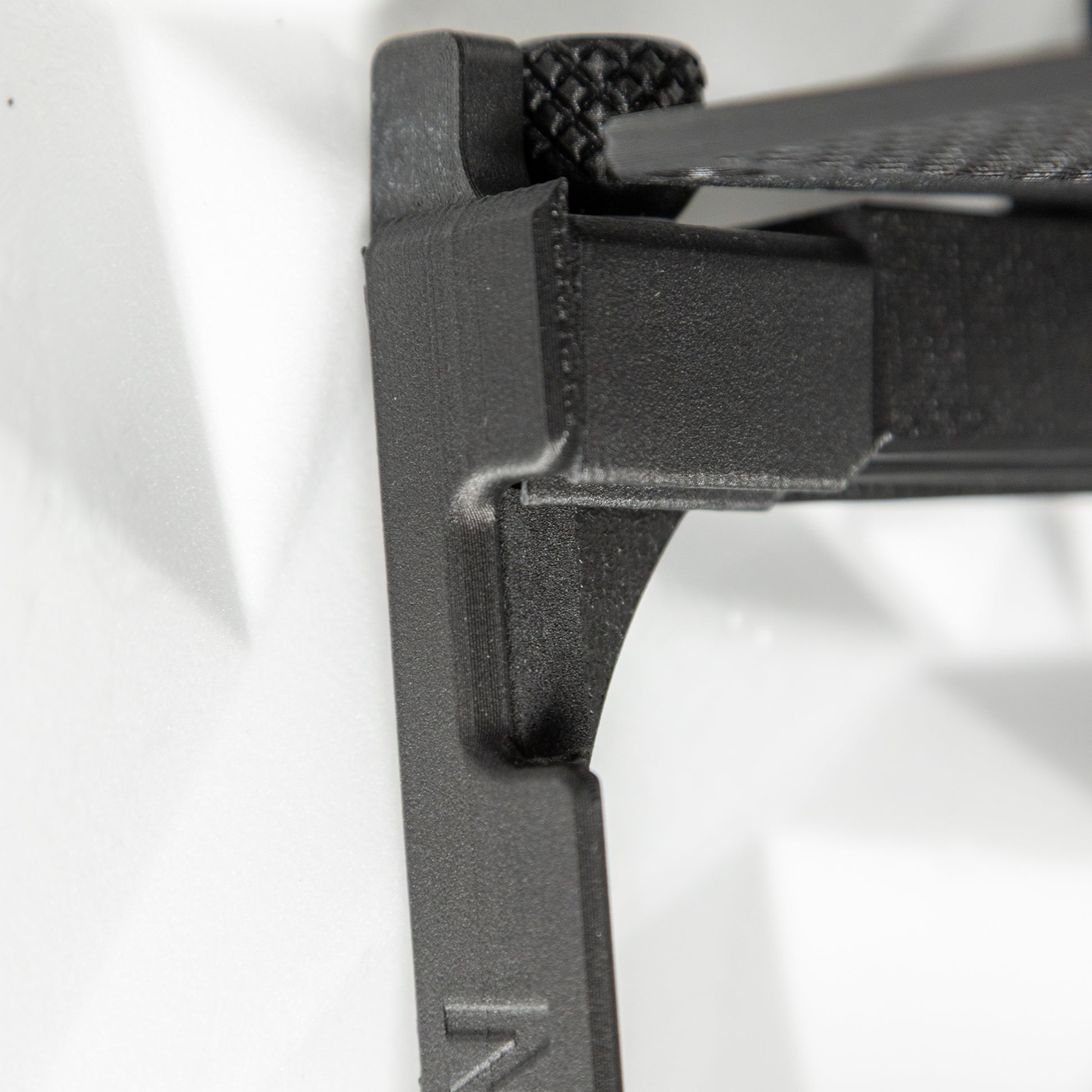

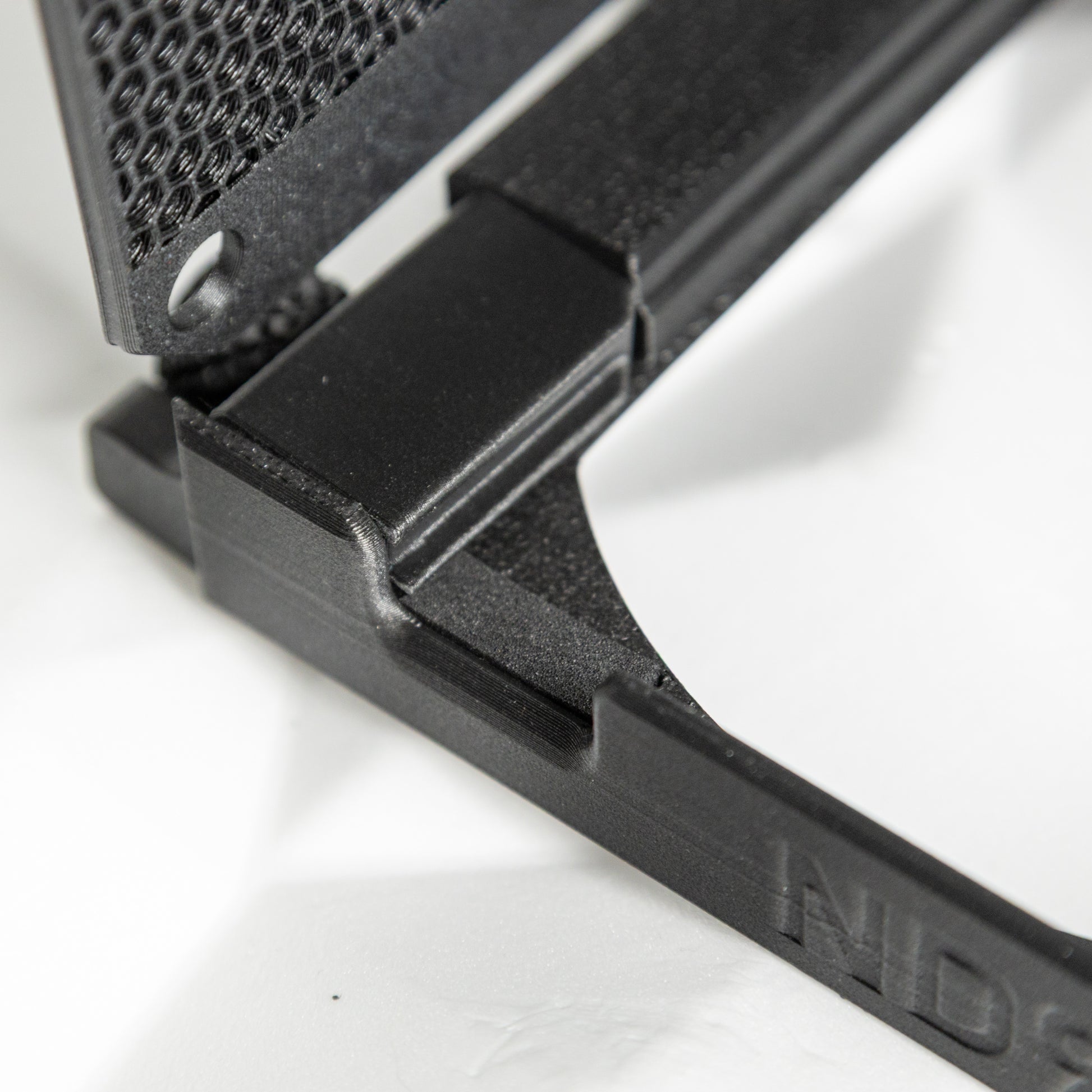

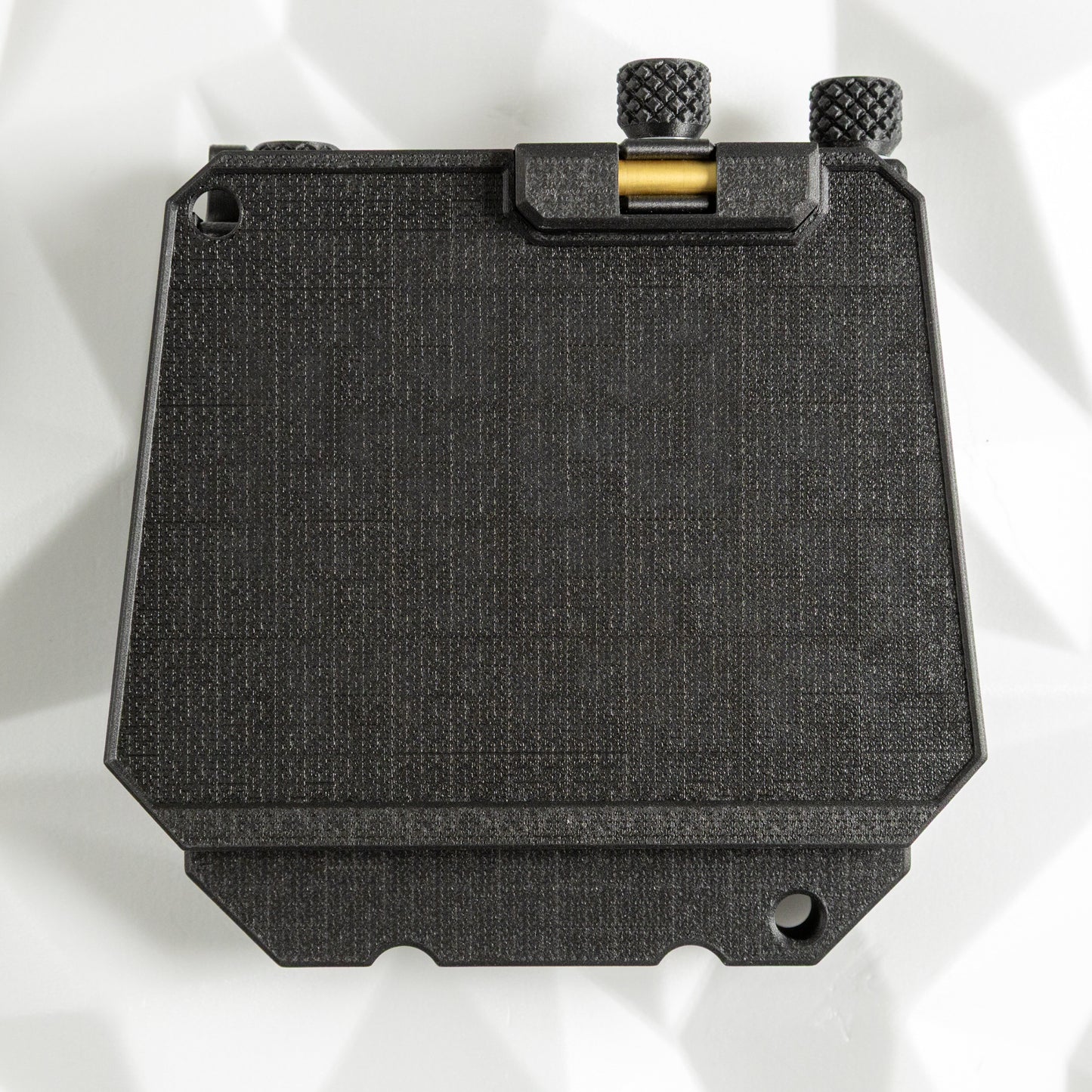

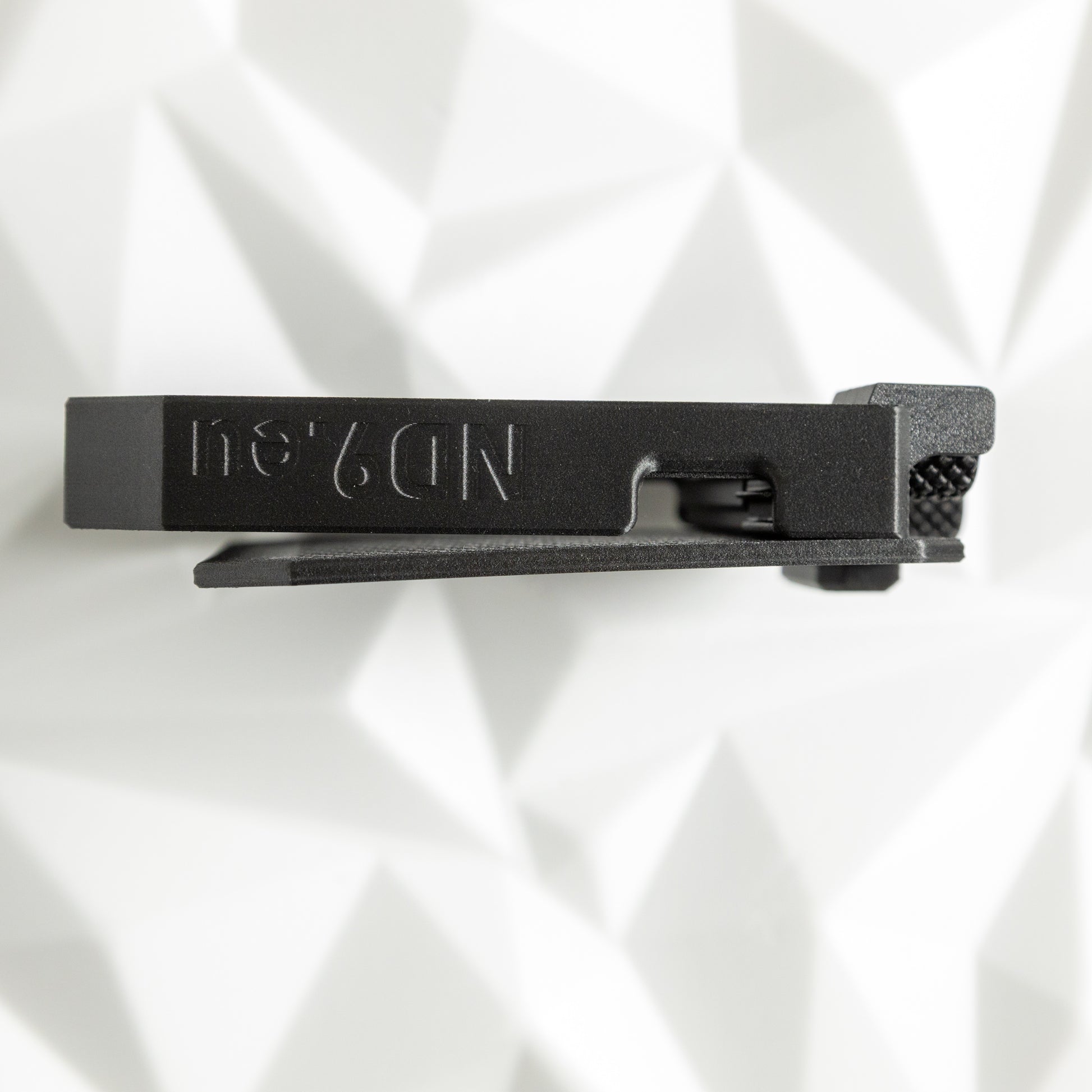

• Modular top flag: pop the flag off via its own thumb screw, or remove the entire assembly to strip weight further.

Select your setup (3 variations):

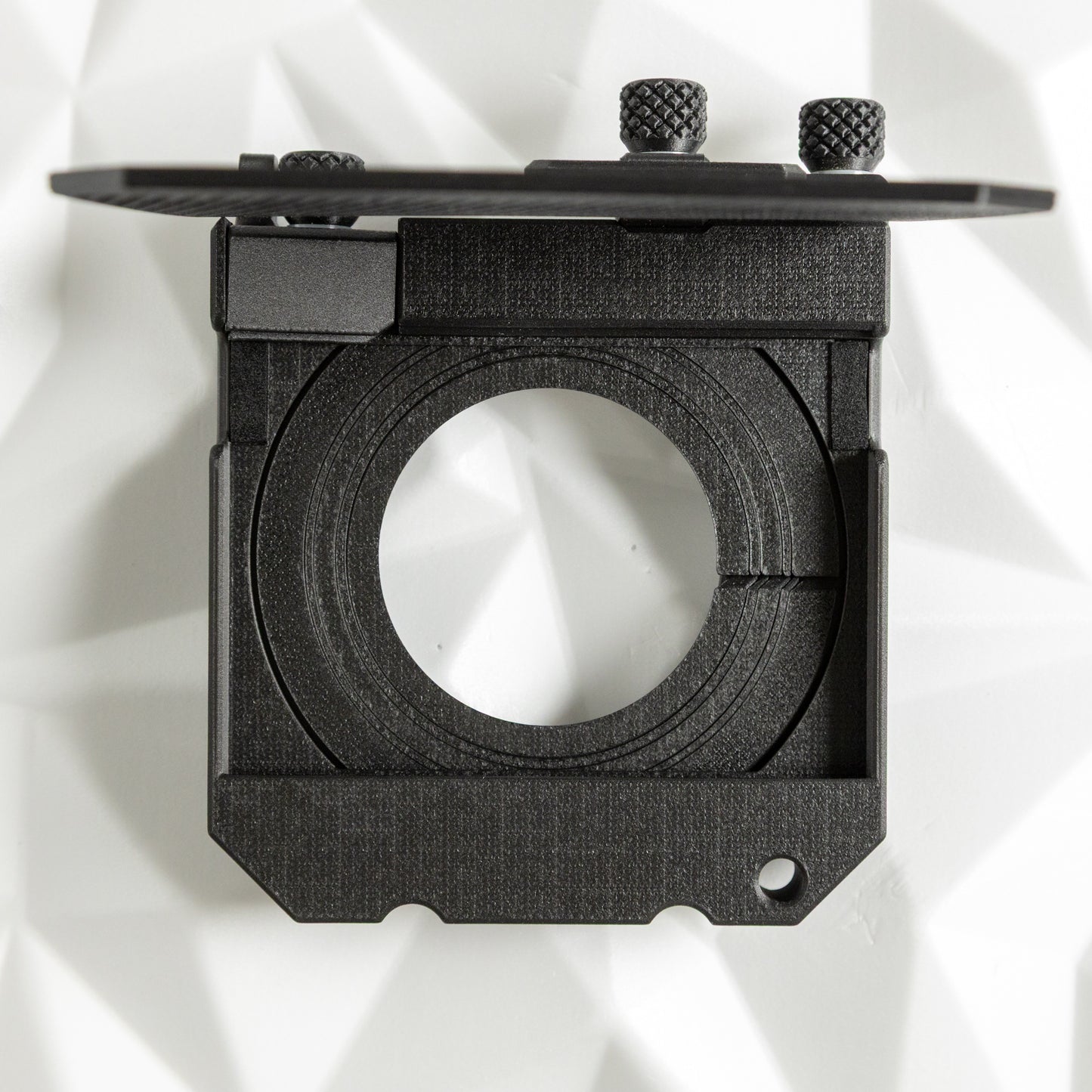

• Full kit (270g): native 136mm body, removable top flag, 7-ring adapter kit (125 / 120 / 114 / 110 / 104 / 100 / 95mm).

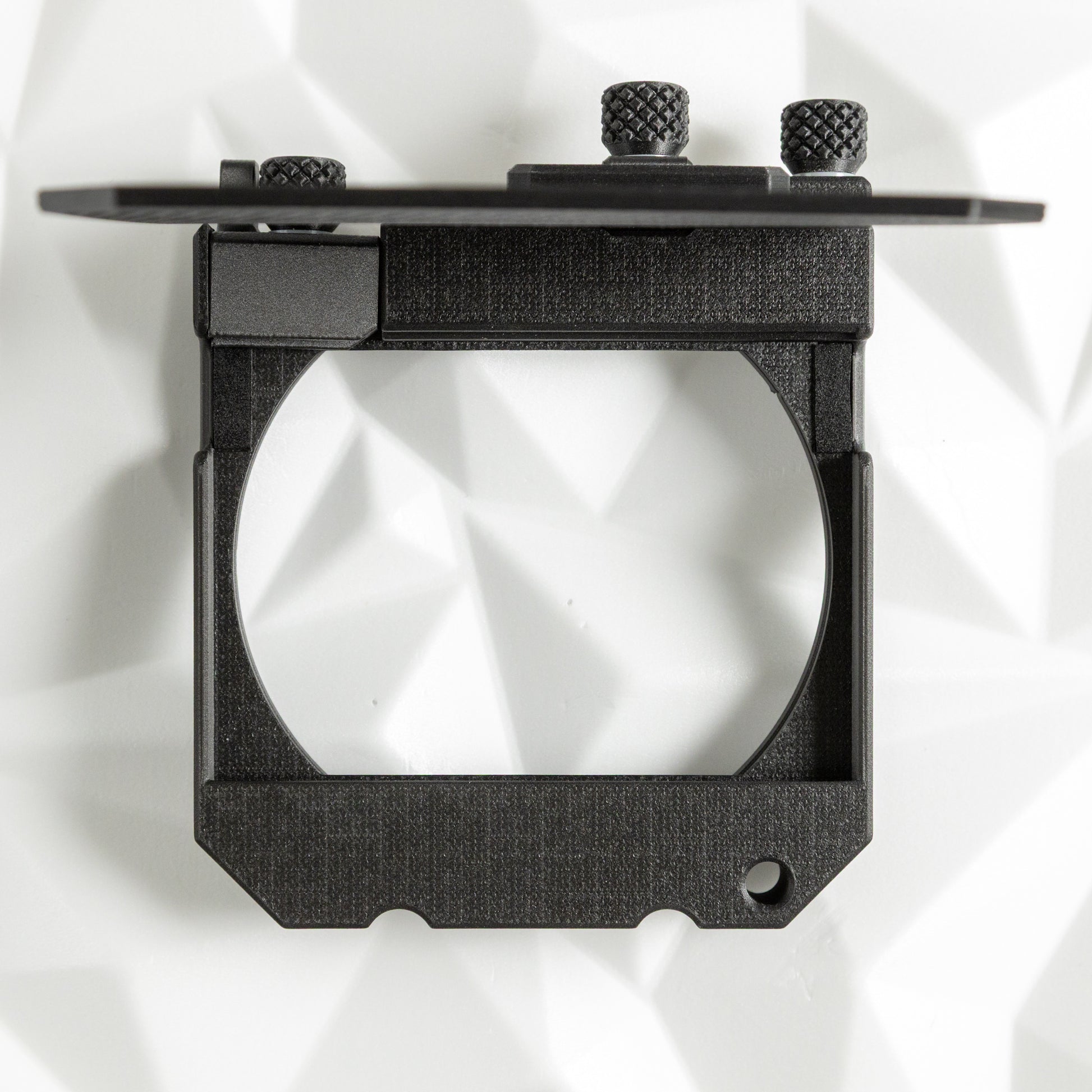

• Matte box with flag (215g): native 136mm body + quick-release top flag.

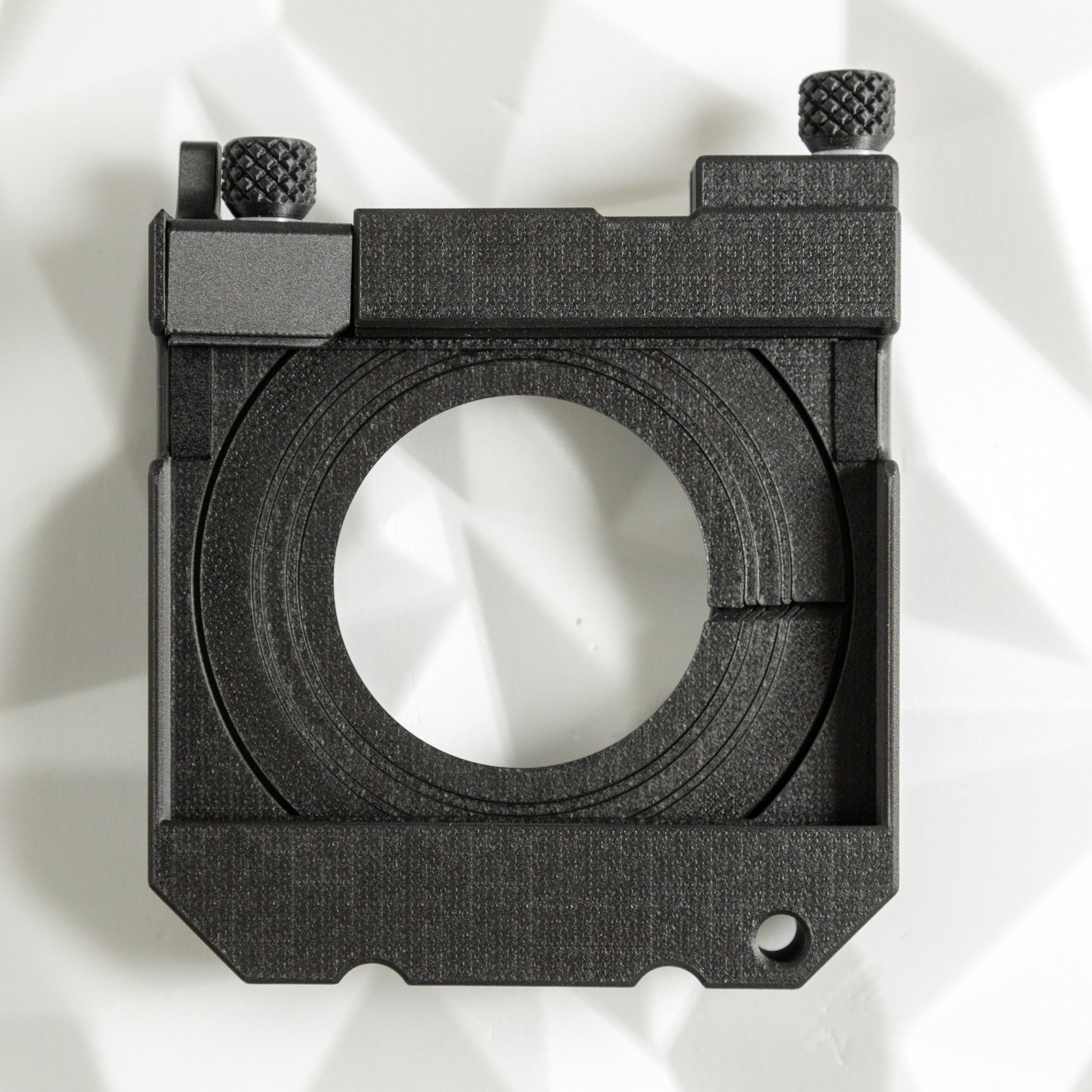

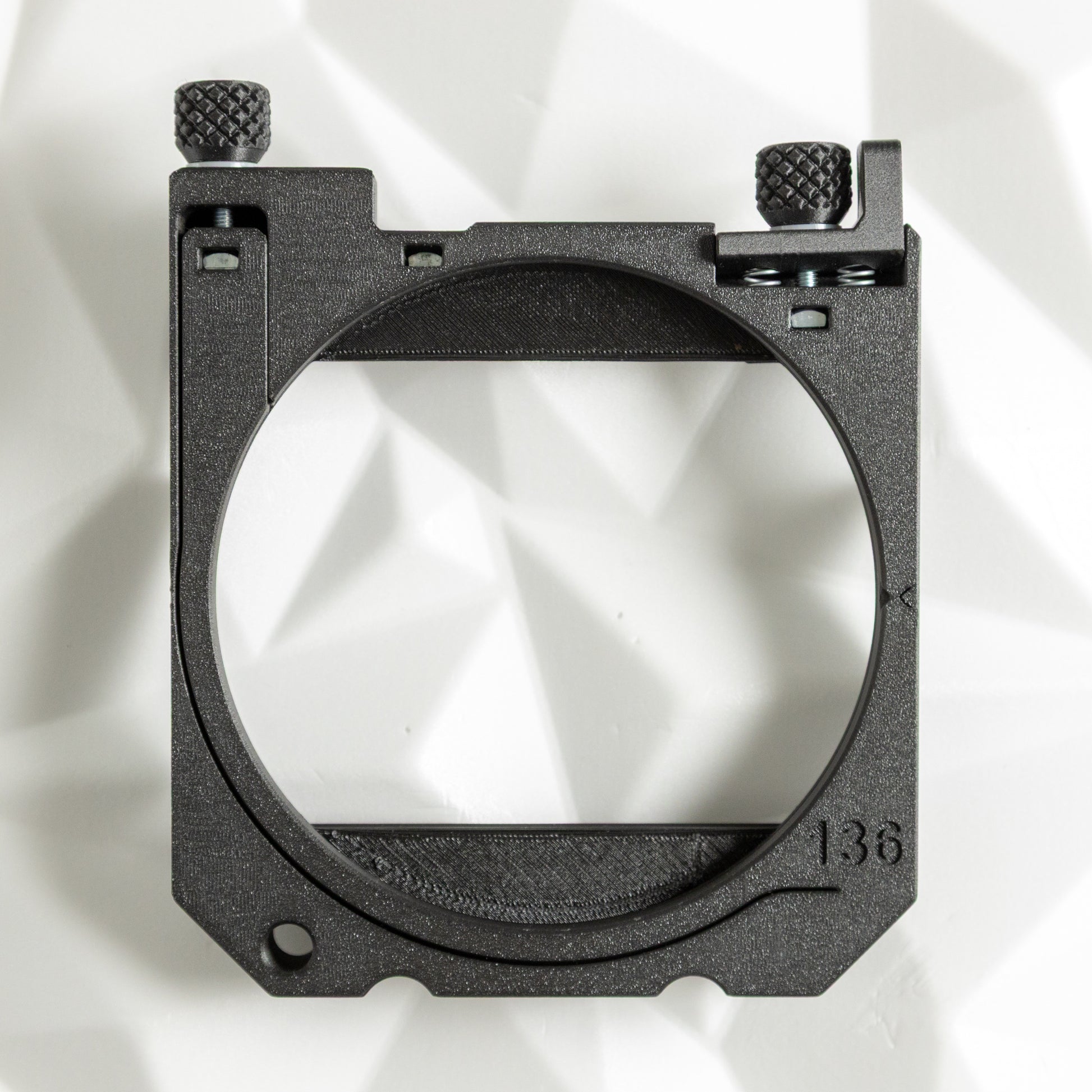

• Body only (150g): stripped-down native 136mm body for the lightest large-format setup.

Specifications:

• Filter capacity: 2× 4" x 5.65" filters
• Native mount: 136mm clamp-on
• Weight: kit 270g / with flag 215g / body only 150g
• Adapter rings included (kit only): 125 / 120 / 114 / 110 / 104 / 100 / 95mm
• Material (black): Polymaker PET-CF17 (carbon-fiber reinforced PET)
